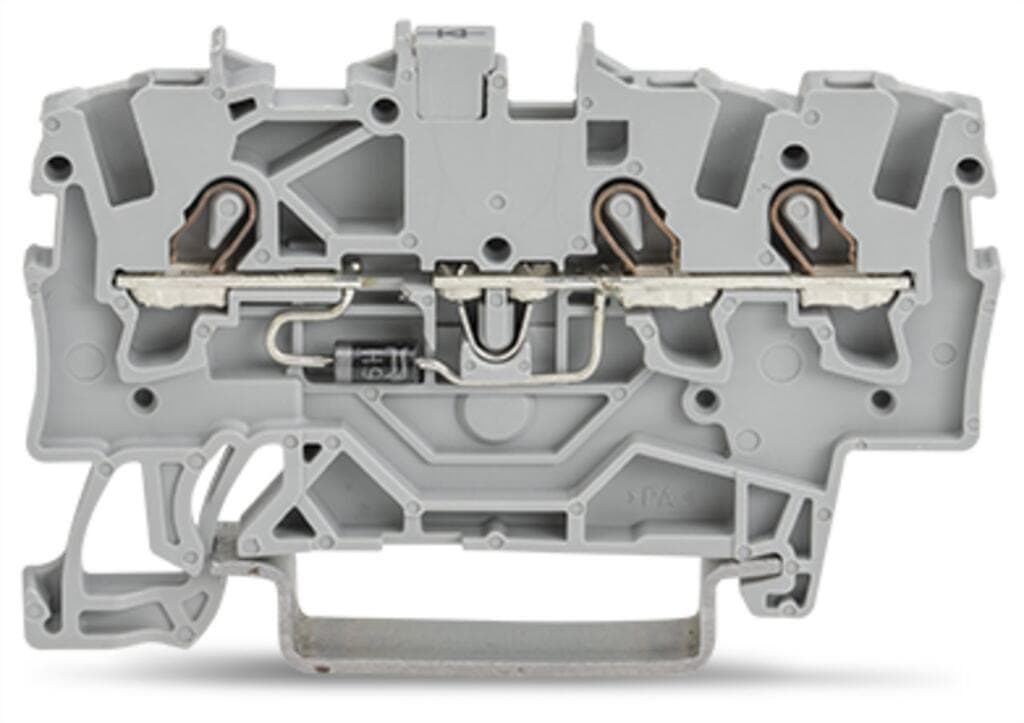

Product Model
2001-1311/1000-411
Selling Points
- 1Efficient Connection Solution: The WAGO 2001-1311/1000-411 diode terminal block offers a reliable and efficient connection solution with its push-in CAGE CLAMP technology.
- 2DIN-Rail Compatibility: Designed for DIN-rail 35 x 15 and 35 x 7.5, this terminal block ensures seamless integration into your existing systems.
- 3High Current Rating: With a rated current of 0.5 A, this terminal block can handle high current applications, making it ideal for demanding electrical systems.
- 4Gray Color: The gray color of the terminal block provides a professional and durable appearance, suitable for industrial environments.
- 5Easy Installation: Featuring a simple push-in actuation, the WAGO 2001-1311/1000-411 diode terminal block ensures quick and easy installation without the need for tools.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 4.2?mm?/ 0.165?inches | Height | 59.2?mm?/ 2.33?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.125MJ | Weight | 5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4045454537579 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | d1662d97-6b66-4239-8980-687fcf29de9a |
SCIP notification number (Belgium) | 717ae67e-7957-435f-8711-bc809bb4f39d | SCIP notification number (Bulgaria) | 8c7a9d1e-1857-4a51-9161-45be3625bbf3 |
SCIP notification number (Czech Republic) | f72311c5-02c5-402a-bc24-74e2d6e27d06 | SCIP notification number (Denmark) | 98bf1c40-dc35-4d10-95bc-6cb9dbfe8365 |
SCIP notification number (Finland) | c29153d8-e66e-44b6-82cd-da83d49edd37 | SCIP notification number (France) | 71288f74-ee69-4c61-9f8d-aaefc71631c6 |
SCIP notification number (Germany) | 534b4d8f-7b32-4956-a70f-69f4b1aef62b | SCIP notification number (Hungary) | 5e79b6da-6045-4301-82ce-80abb0492717 |
SCIP notification number (Italy) | 65c0432e-c3ee-4eab-8ec3-648beb832469 | SCIP notification number (Netherlands) | a9037691-b79b-4f82-b64d-2d46c2870fe9 |
SCIP notification number (Poland) | bbd36979-913c-4e19-b3e6-7e53a20c8dce | SCIP notification number (Romania) | c73b0d72-caa1-4fe3-8677-913b9bd56262 |
SCIP notification number (Sweden) | 1d1a04b8-9f38-4e6f-8067-f6c75985f3d7 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 15A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Continuous current (max.) | 500 mA | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 1.5 mm2 | Solid conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Solid conductor; push-in termination | 0.75 … 2.5?mm2?/ 18 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.75 … 1.5?mm2?/ 18 … 16?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
