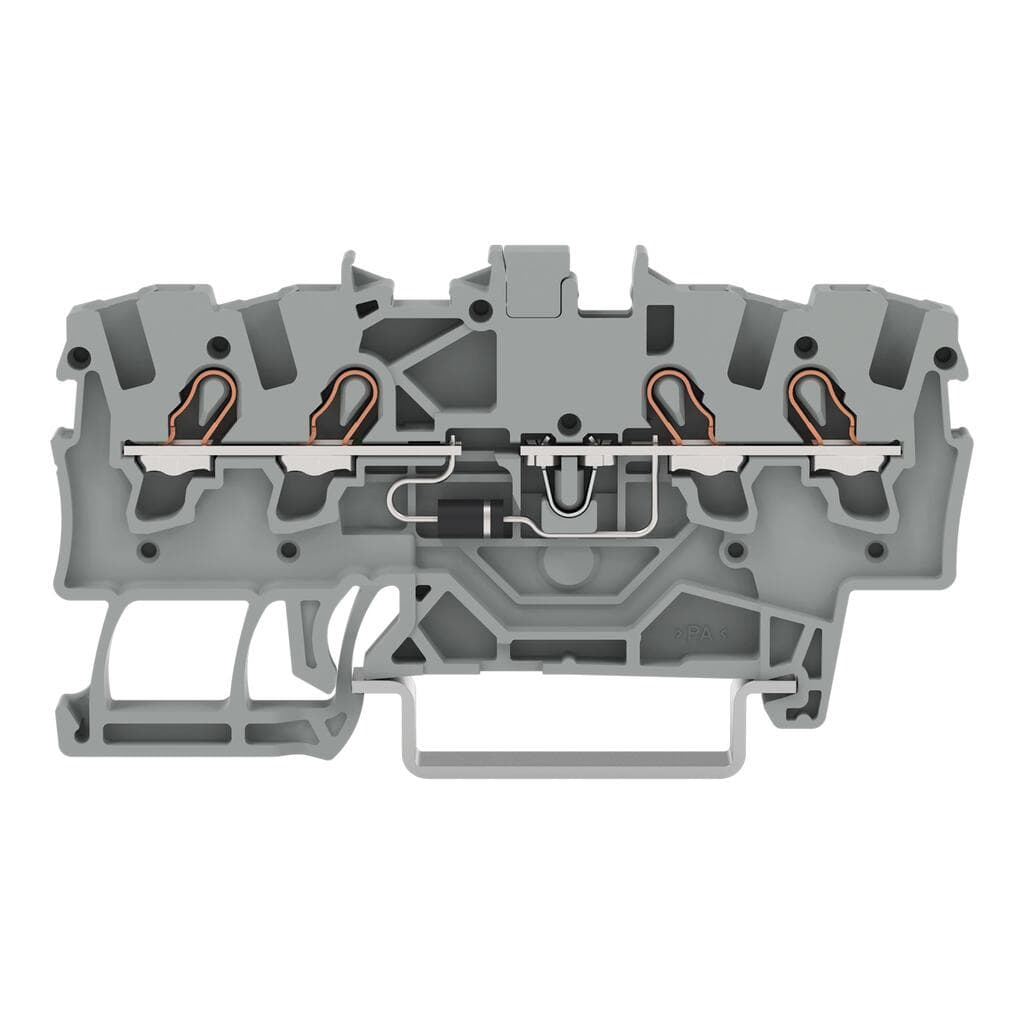

Product Model
2001-1411/1000-410
Selling Points
- 1Compact design, up to 30% smaller than standard terminal blocks.
- 2Push-in CAGE CLAMP connections for easy installation.
- 3Accommodates wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG).
- 4Rated current of 0.5A and voltage rating of 250V.
- 5Gray color with side and center marking slots for precise wiring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 4.2?mm?/ 0.165?inches | Height | 69.9?mm?/ 2.752?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.147MJ | Weight | 6.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4045454537609 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 8587bd30-da98-470c-8f88-229c0a873a7c |
SCIP notification number (Belgium) | 7af4d3a0-d9d8-4f82-9bd7-163e677d689c | SCIP notification number (Bulgaria) | f623de0f-0006-45c6-bf7e-6ffcd8177238 |
SCIP notification number (Czech Republic) | 87bf16ab-8bfc-4b7c-bc6a-0e02f2dc0008 | SCIP notification number (Denmark) | 68ac3711-124c-4315-a245-1bf0c50784af |
SCIP notification number (Finland) | 8d7d2799-d63d-4d31-9af3-c05f24edbf9e | SCIP notification number (France) | 87f6e71e-79e4-4d6e-93cc-ae8567827824 |
SCIP notification number (Germany) | 7336aa3b-7b52-4ebd-b6d5-01e7b252778f | SCIP notification number (Hungary) | 0aba15fe-87f0-4b4b-8e93-3d90faaff75f |
SCIP notification number (Italy) | 92cdef96-e0b0-48a3-bd4c-228b07b2984c | SCIP notification number (Netherlands) | 84445e14-c4c9-4b8a-81f2-c08c1cb06e1f |
SCIP notification number (Poland) | 24832f7f-4335-4516-9715-7b0c22c4a536 | SCIP notification number (Romania) | 695c1544-80ba-4c84-a673-d7300dc9ad54 |
SCIP notification number (Sweden) | 7a748b35-e262-4630-b52c-c8e6528d5b18 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 15A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Continuous current (max.) | 500 mA | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 1.5 mm2 | Solid conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Solid conductor; push-in termination | 0.75 … 2.5?mm2?/ 18 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.75 … 1.5?mm2?/ 18 … 16?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
