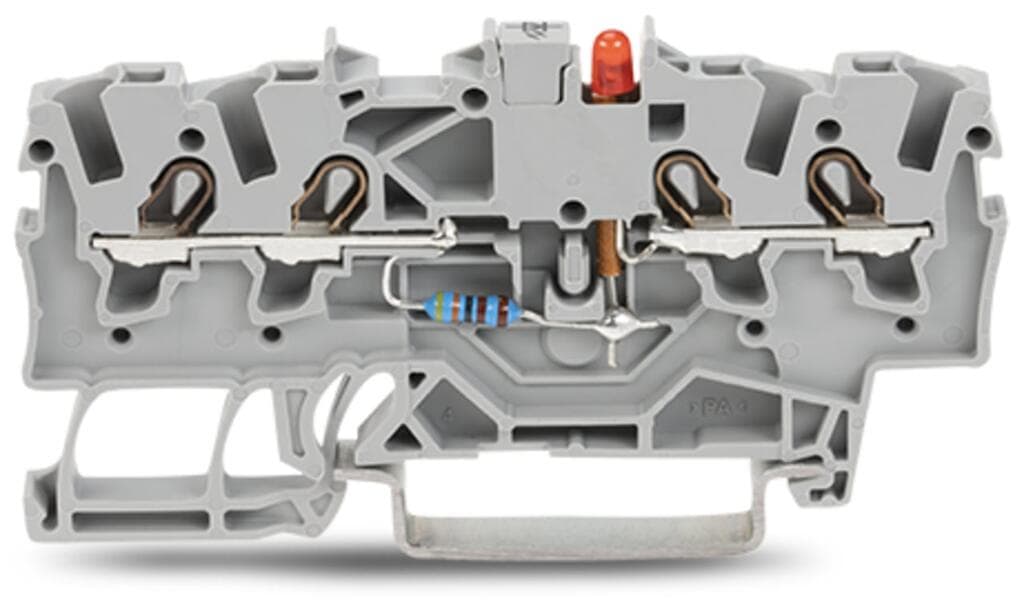

Product Model
2001-1421/1000-413
Selling Points
- 1Compact design, up to 30% smaller than standard terminal blocks.
- 2Secure push-in CAGE CLAMP connections for solid and ferruled conductors.
- 3Suitable for wire sizes 0.25mm² to 2.5mm² or #22AWG to #14AWG.
- 4Fire load: 0.009 MJ, flammability class per UL94: V0.
- 5Easy installation with a conductor entry angle of less than 15°.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Notice: This LED terminal block cannot be commoned with push-in type jumper bars. | Clamping units | 4 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 4.2?mm?/ 0.165?inches | Height | 69.9?mm?/ 2.752?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.137MJ | Weight | 6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454537630 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 7(c)-I | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.025A | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 15A |
Voltage type 1 | DC | Nominal voltage | 24V |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 1.5 mm2 |
Solid conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Solid conductor; push-in termination | 0.75 … 2.5?mm2?/ 18 … 14?AWG |
Fine-stranded conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 22 … 16?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.75 … 1.5?mm2?/ 18 … 16?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
