Product Model

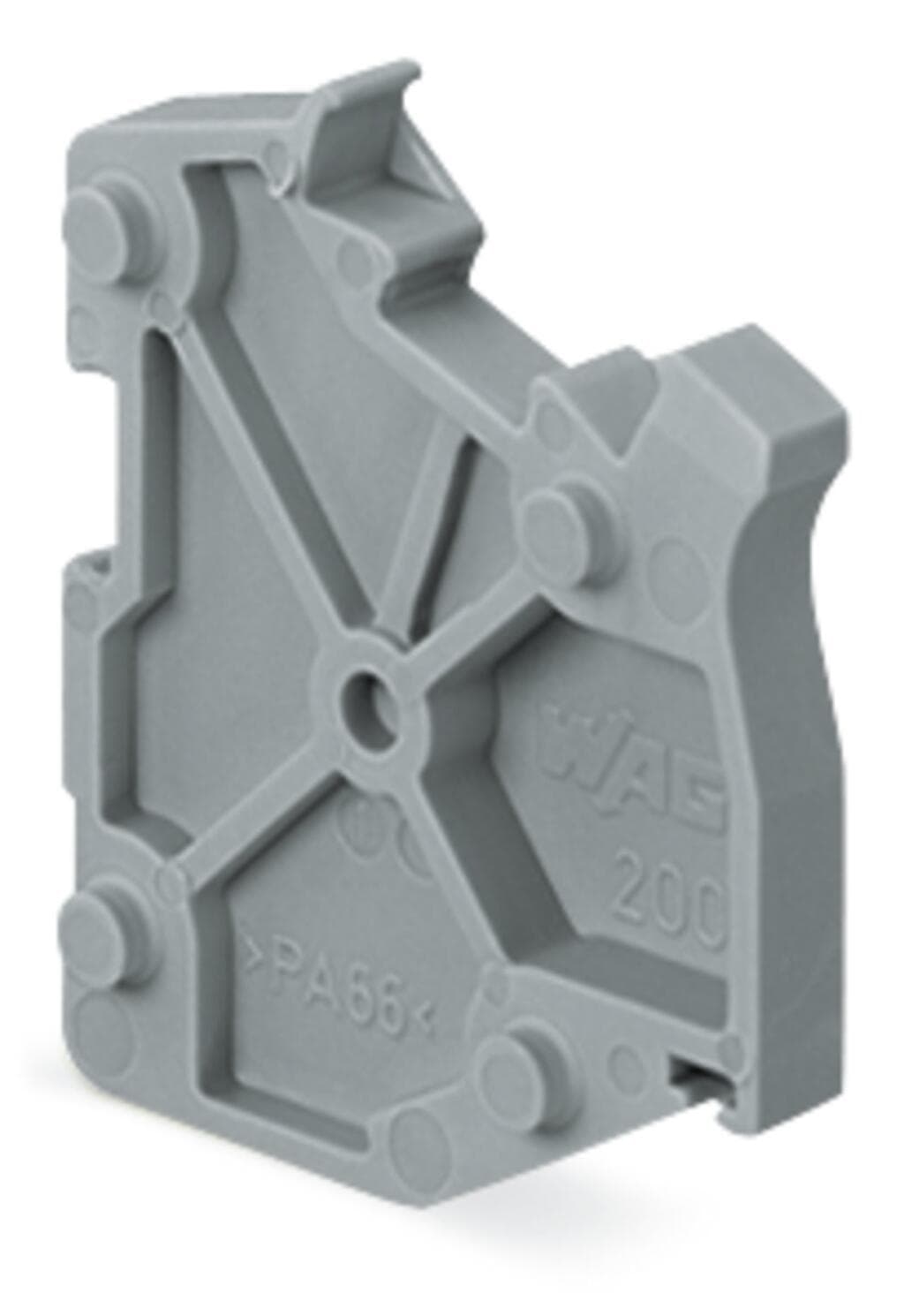

2001-549
Selling Points
- 1The WAGO 2001-549 spacer module is specifically designed to ensure secure jumper contact slots, preventing loose connections and ensuring reliable performance.
- 2This module is easy to install, providing a straightforward solution for maintaining the integrity of your electrical connections.
- 3Compatible with various WAGO terminal blocks, making it a versatile addition to your automation system.
- 4Built with durable materials, the spacer module withstands the demands of industrial environments.
- 5By maintaining proper spacing, this module enhances safety by preventing short circuits and ensuring compliance with electrical standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 4.2?mm?/ 0.165?inches | Module width | 4.2?mm?/ 0.165?inches |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Flammability class per UL94 | V0 |
Fire load | 0.031MJ | Weight | 1.1g |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332999083 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 1 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
