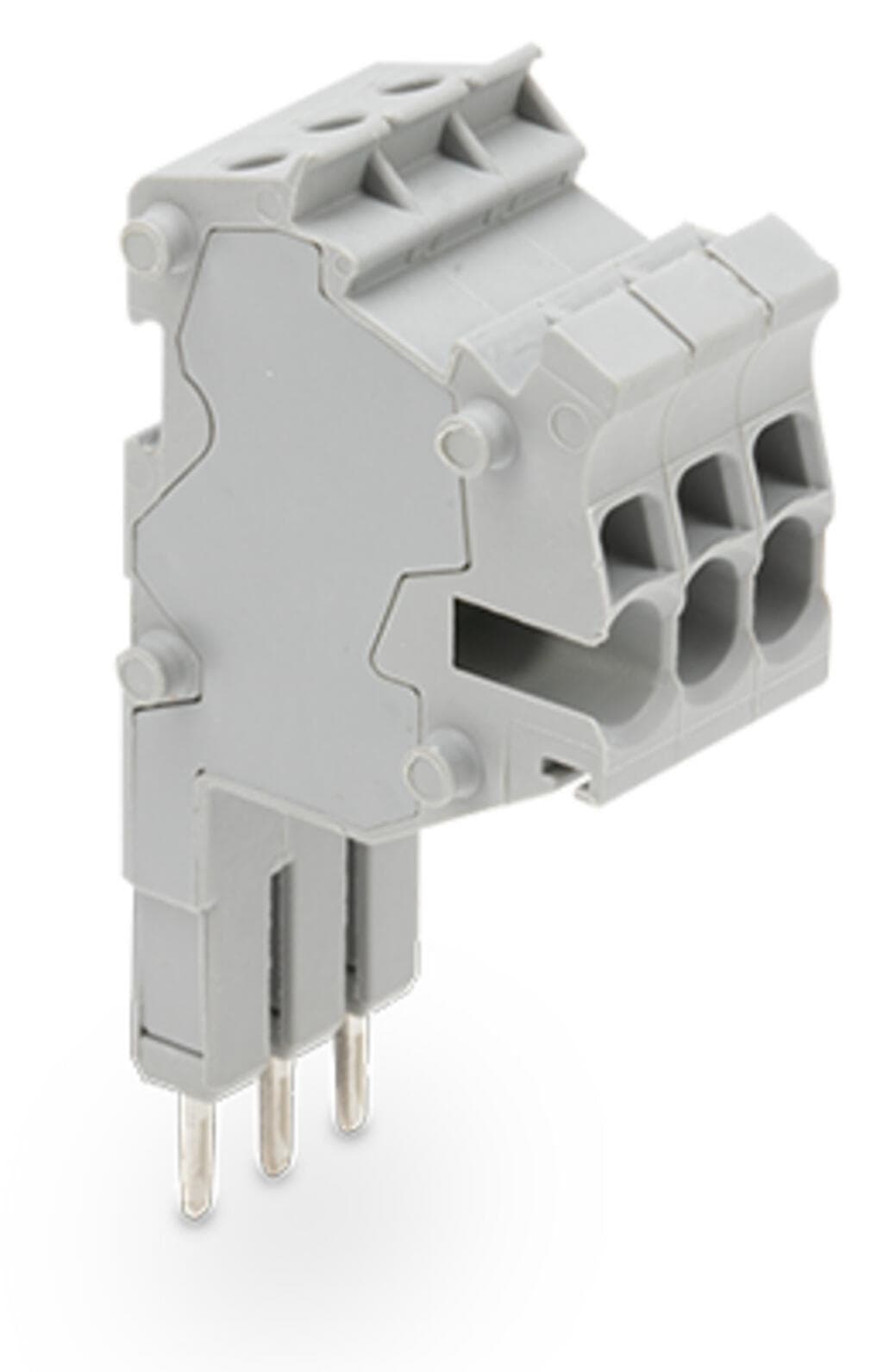

wago 2001-552

Selling Points

  • 1Modular design for easy integration into various systems.
  • 2Compatible with jumper contact slots, enhancing connectivity options.
  • 3High reliability and durability in harsh environments.
  • 4Easy installation with push-in termination technology.
  • 5Suitable for a wide range of industrial applications, including Ex e II environments.
Product Details
2001-552
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Safety information
According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
Clamping units
2
Total number of potentials
2
Width
8.4?mm?/ 0.331?inches
Module width
4.2?mm?/ 0.165?inches
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
gray
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.098MJ
Weight
4.4g
Product Group
22 (TOPJOB S)
eCl@ss 10.0
27-14-11-51
eCl@ss 9.0
27-14-11-51
ETIM 9.0
EC002021
ETIM 8.0
EC002021
ECCN
NO US CLASSIFICATION
PU (SPU)
25?pcs
Packaging type
box
Country of origin
DE
GTIN
4045454178246
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Rated voltage (III / 3)
500V
Rated impulse voltage (III / 3)
6kV
Rated current
18A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Connection technology
Push-in CAGE CLAMP?
Actuation type
Operating tool
Nominal cross-section
1.5 mm2
Solid conductor
0.25 … 2.5?mm2?/ 22 … 14?AWG
Solid conductor; push-in termination
0.75 … 2.5?mm2?/ 18 … 14?AWG
Fine-stranded conductor
0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5?mm2?/ 22 … 16?AWG
Fine-stranded conductor; with ferrule; push-in termination
0.75 … 1.5?mm2?/ 18 … 16?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
9 … 11?mm?/ 0.35 … 0.43?inches
Number of poles
2
Wiring direction
Side-entry wiring
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests
DIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Installation location
Service life test, Category?1, Class?A/B
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Frequency
f1= 5 Hz to f2= 150 Hz
Acceleration
5g (highest test level used for all axes)
Test duration per axis
5 h
Test directions
X, Y and Z axes
Monitoring for contact faults/interruptions
Passed
Voltage drop measurement before and after each axis
Passed
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Shock test
Test passed according to Section 10 of the standard
Shock form
Half sine
Shock duration
30 ms
Number of shocks per axis
3 pos. und 3 neg.
Vibration and shock stress for rolling stock equipment
Passed

Specifications may be subject to change without notice
