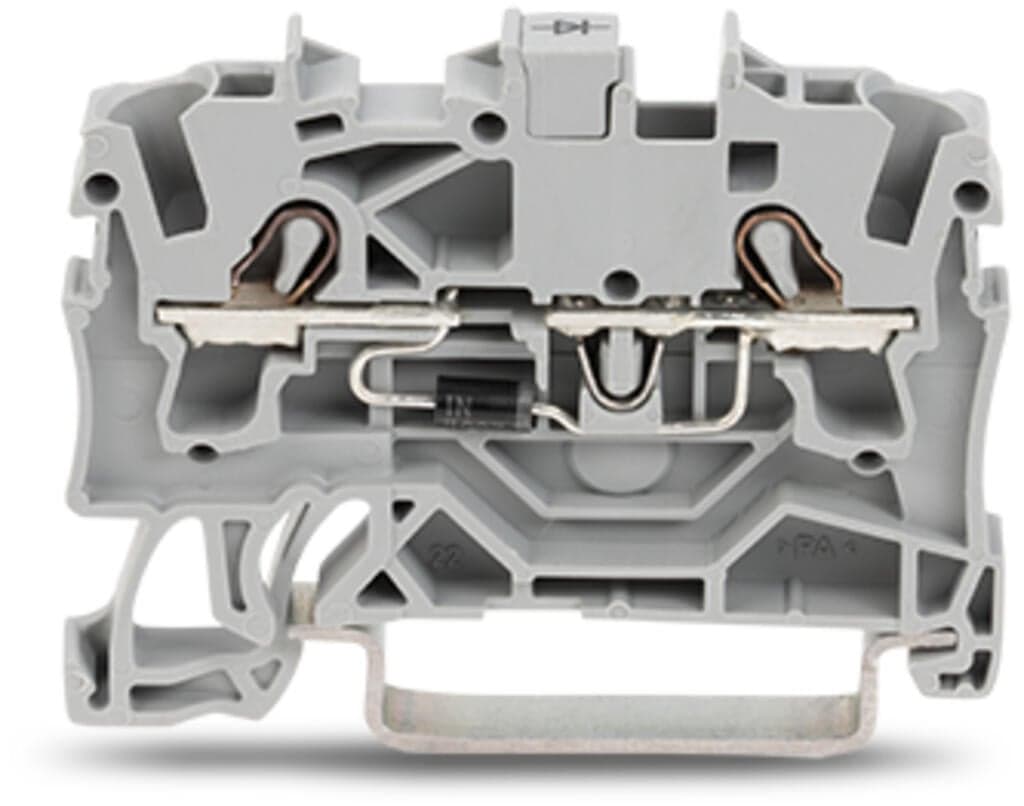

Product Model
2002-1211/1000-410
Selling Points
- 1Efficient Push-in CAGE CLAMP Connections: Securely connect wires with the push-in mechanism.
- 2DIN-35 Rail Mounting: Easily integrate into standard DIN-35 rail systems.
- 3Rated Current of 0.003A: Suitable for low-current applications.
- 4Gray Color and Polyamide Insulation: Durable and visually consistent.
- 5Accommodates Wire Sizes 0.25-4 mm²: Versatile for various conductor sizes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 5.2?mm?/ 0.205?inches | Height | 48.5?mm?/ 1.909?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.148MJ | Weight | 5.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4045454537647 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 5a6695e2-68b0-4662-8687-e080f0e21c94 |
SCIP notification number (Belgium) | dad0ade3-fc6e-4a85-b4f5-3f1ff4d14415 | SCIP notification number (Bulgaria) | 7f87366a-f899-4f0d-ae01-48611024a64d |
SCIP notification number (Czech Republic) | d3d13a54-5a8c-439f-91e4-9cc8054b6834 | SCIP notification number (Denmark) | 86ff420e-14af-46e3-9108-f499c90559fe |
SCIP notification number (Finland) | 477e8148-87ab-4ce0-8184-af376f50e537 | SCIP notification number (France) | ca072e16-aa93-4af2-9c4f-6d8b97c54dd1 |
SCIP notification number (Germany) | bc8e80cd-ed85-4b35-8feb-690f59521d3e | SCIP notification number (Hungary) | fdcc187a-450c-4157-bae2-6dd9359b2c42 |
SCIP notification number (Italy) | 8bbd21ee-7dfa-4697-ae72-8ddb3a8ce29f | SCIP notification number (Netherlands) | b09e9f54-7a29-49b0-aabe-e441bcc47af7 |
SCIP notification number (Poland) | 58be8bec-2540-4a59-9bab-b5806b257121 | SCIP notification number (Romania) | 34c9f41c-4d08-4b51-89c6-6fd4a89f0fc9 |
SCIP notification number (Sweden) | a06ffe25-830d-46a8-8def-cd1500b26761 | Nominal voltage | 250V |
Reverse voltage | 1,000V | Continuous current (max.) | 500 mA |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
