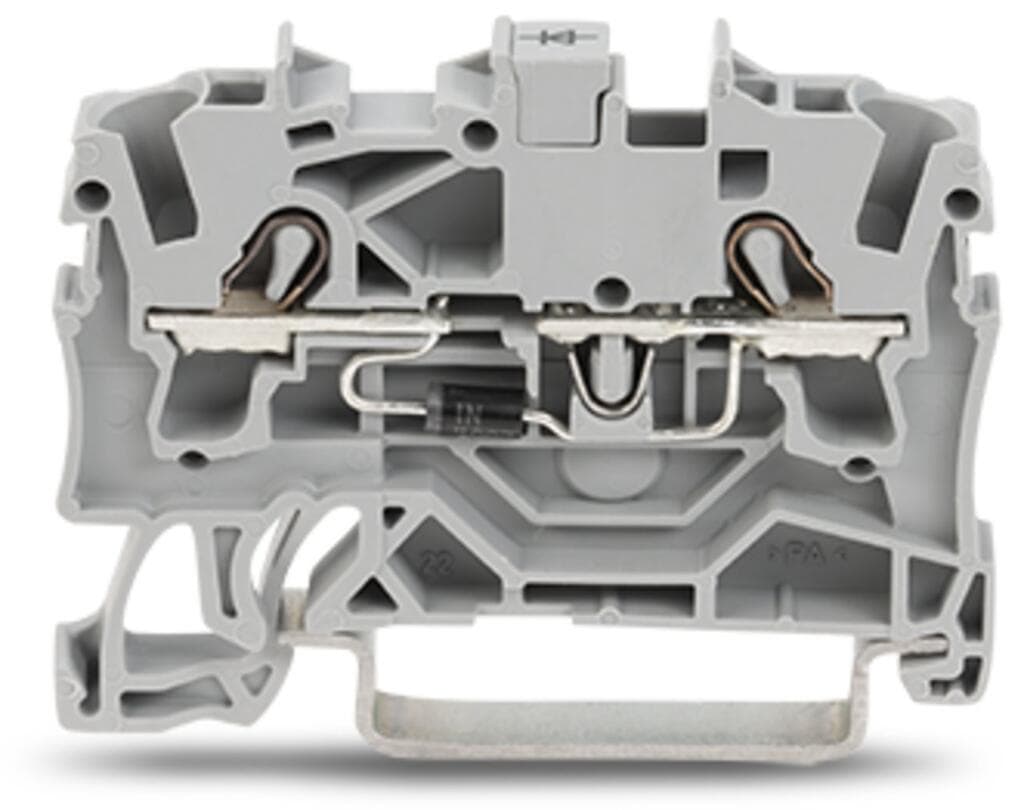

Product Model
2002-1211/1000-411
Selling Points
- 1Reliable 2-Conductor Connections: Ensures secure and efficient electrical connections.
- 2Built-in 1N4007 Diode: Provides protection against voltage spikes and reverse polarity.
- 3Push-in CAGE CLAMP Technology: Easy to use and maintain, with no need for tools.
- 4DIN-35 Rail Mounting: Convenient and space-efficient for industrial applications.
- 5Gray Color for Easy Identification: Enhances visibility in complex electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 5.2?mm?/ 0.205?inches | Height | 48.5?mm?/ 1.909?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.148MJ | Weight | 5.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4045454537654 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | de8031cf-25cc-483f-95ce-db4b66a65dd2 |
SCIP notification number (Belgium) | e3845ae4-3ba5-45c3-9672-3eda5127b73a | SCIP notification number (Bulgaria) | b1e72f28-73b5-4072-bf3f-396b392b3357 |
SCIP notification number (Czech Republic) | 1c4399fe-d43b-42b9-a390-ced01679c63c | SCIP notification number (Denmark) | 11159cfc-4a5a-4db1-9b31-dca70027c9f2 |
SCIP notification number (Finland) | 54c47c1b-b65f-4982-8c4f-71dd7d1dcfe0 | SCIP notification number (France) | 84a1136f-6943-4a72-a82e-a3d5cf9ab5e5 |
SCIP notification number (Germany) | a6dd4430-217a-4cb4-9364-de6a5b241d62 | SCIP notification number (Hungary) | 4482f5e9-3be4-4d4d-b5b7-dbf09c475c90 |
SCIP notification number (Italy) | c81daa2f-ad01-4356-8d72-794dafbf1da2 | SCIP notification number (Netherlands) | 53204376-299f-40b9-b312-297ec9dc6d1f |
SCIP notification number (Poland) | f664a74c-85b1-460f-8670-796dc26d2655 | SCIP notification number (Romania) | c7fa33e7-f77b-4c69-9e6d-52e7efa28ad5 |
SCIP notification number (Sweden) | a7b3d433-8591-47fe-80c4-3aea932360b0 | Nominal voltage | 250V |
Reverse voltage | 1,000V | Continuous current (max.) | 500 mA |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
