Product Model

2002-2201/098-000

In Stock
Last updated: 2025/4/19

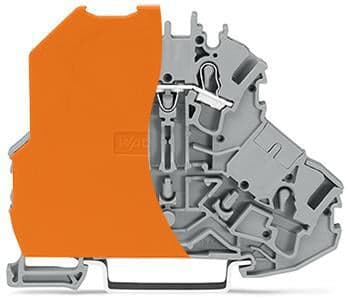

wago 2002-2201/098-000

Selling Points

  • 17.2 mm wide, ideal for DIN rail mounting.
  • 2Push-in CAGE CLAMP technology for quick and secure connections.
  • 3Suitable for various applications with a 2-conductor setup.
  • 4Gray color with orange separator for easy identification.
  • 5Made from high-quality polyamide 6.6 insulation material.
Product Details
2002-2201/098-000
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
2
Total number of potentials
1
Number of levels
2
Width
7.2?mm?/ 0.283?inches
Height
69.9?mm?/ 2.752?inches
Depth from upper-edge of DIN-rail
53.3?mm?/ 2.098?inches
Potential Marking
L
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.235MJ
Weight
13.2g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
eCl@ss 10.0
27-14-11-20
eCl@ss 9.0
27-14-11-20
ETIM 9.0
EC000897
ETIM 8.0
EC000897
ECCN
NO US CLASSIFICATION
PU (SPU)
50?pcs
Packaging type
box
Country of origin
DE
GTIN
4055143420235
Customs tariff number
85369010000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60947-7-1
Rated voltage (III / 3)
1000V
Rated impulse voltage (III / 3)
12kV
Rated current
24A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Rated voltage (III/3) 2
1500V
Rated surge voltage (III/3) 2
12kV
Approvals per
UL 1059
Rated voltage UL (Use Group B)
1000V
Rated current UL (Use Group B)
20A
Rated voltage UL (Use Group C)
1000V
Rated current UL (Use Group C)
20A
Power loss, per pole (potential)
0.766W
Rated current I<sub>N</sub> for specified power loss
24A
Resistance value for specified, current-dependent power loss
0.001Ω
Voltage type 1
AC/DC
Voltage type 2
DC
Connection technology
Push-in CAGE CLAMP?
Actuation type
Operating tool
Connectable conductor materials
Copper
Nominal cross-section
2.5 mm2
Solid conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Solid conductor; push-in termination
0.75 … 4?mm2?/ 18 … 12?AWG
Fine-stranded conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with ferrule; push-in termination
1 … 2.5?mm2?/ 18 … 14?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
10 … 12?mm?/ 0.39 … 0.47?inches
Wiring direction
Front-entry wiring
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests
DIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Installation location
Service life test, Category?1, Class?A/B
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Frequency
f1= 5 Hz to f2= 150 Hz
Acceleration
5g (highest test level used for all axes)
Test duration per axis
5 h
Test directions
X, Y and Z axes
Monitoring for contact faults/interruptions
Passed
Voltage drop measurement before and after each axis
Passed
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Shock test
Test passed according to Section 10 of the standard
Shock form
Half sine
Shock duration
30 ms
Number of shocks per axis
3 pos. und 3 neg.
Vibration and shock stress for rolling stock equipment
Passed

Specifications may be subject to change without notice
