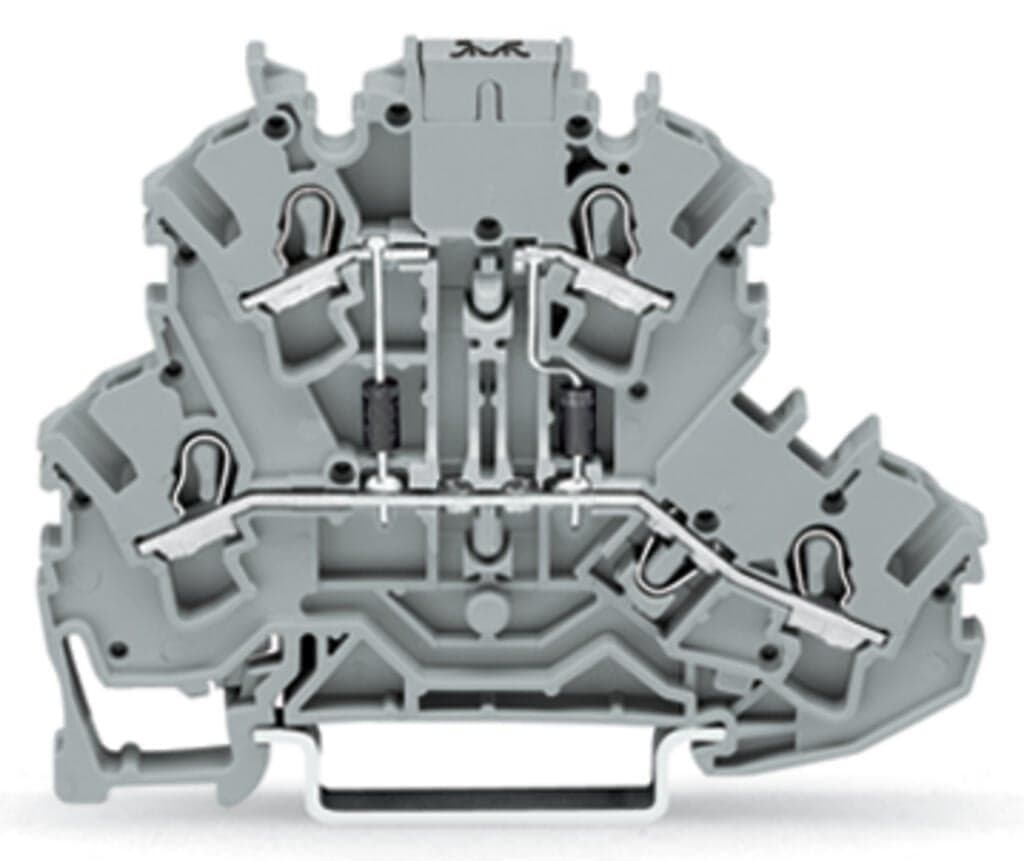

Product Model
2002-2213/1000-487
Selling Points
- 1Features two levels of diodes for enhanced functionality.
- 2Designed for easy installation on DIN rail systems.
- 3Constructed with polyamide (PA66) insulation and V0 flammability class.
- 4Durable gray color for easy identification in industrial settings.
- 5Easy connection technology for quick and secure conductor insertion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Width | 5.2?mm?/ 0.205?inches |
Height | 69.7?mm?/ 2.744?inches | Depth from upper-edge of DIN-rail | 51.7?mm?/ 2.035?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.238MJ |
Weight | 10.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454375591 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 83807c2c-9afd-443f-a032-8c2e968ecc38 | SCIP notification number (Belgium) | a4421150-108b-43d7-a694-9ef556c5af9a |
SCIP notification number (Bulgaria) | 9ddb8fb6-348b-4b57-8f06-37c3a1b8cd68 | SCIP notification number (Czech Republic) | dfbfc651-7b07-4bd9-890f-127567ea9482 |
SCIP notification number (Denmark) | a703e15e-5b41-4640-b871-4c86a6e3b426 | SCIP notification number (Finland) | 716dbf6c-875a-4175-b890-123795b0df60 |
SCIP notification number (France) | 6d35e850-4940-4fe1-bc49-59f4619df5cd | SCIP notification number (Germany) | ee122e0d-c02d-4212-9d1d-3b1359ecfac8 |
SCIP notification number (Hungary) | aa994f7b-862e-4394-9f19-07c525613ab4 | SCIP notification number (Italy) | c63ef36a-2702-4b1b-899f-5c59a2f1e37e |
SCIP notification number (Netherlands) | 568d28e3-d488-4fef-8c24-913e56d48748 | SCIP notification number (Poland) | 3be07c96-ec28-439e-8037-7bc5bdd4e801 |
SCIP notification number (Romania) | 030b4ef2-3d96-4db7-b215-073afada0868 | SCIP notification number (Sweden) | a8f9de5f-0f71-4839-afae-75b33dad9759 |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
