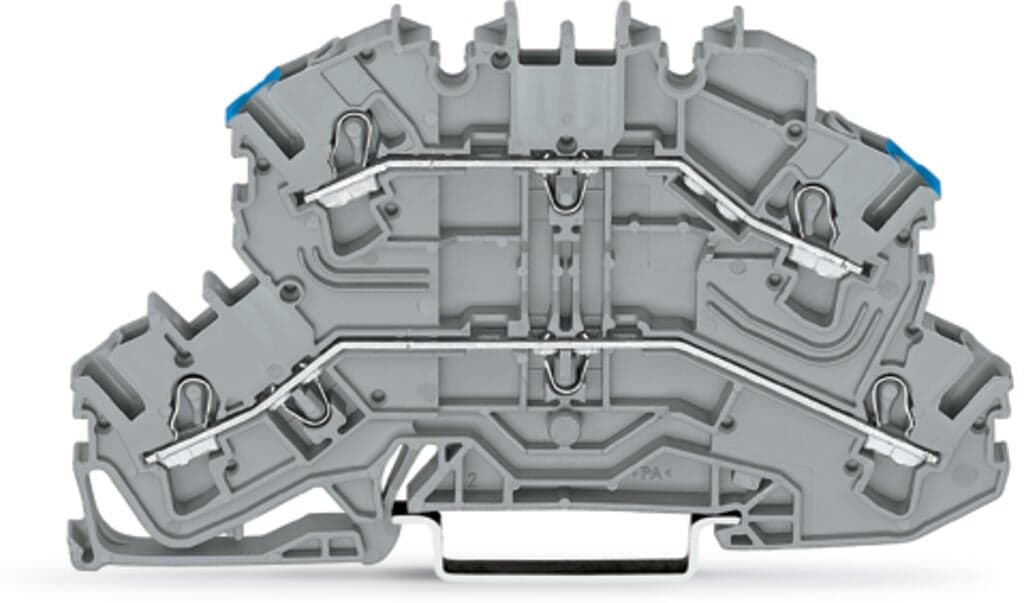

Product Model
2002-2603
Selling Points
- 1High current rating up to 24 A.
- 2Push-in CAGE CLAMP connections for easy wiring.
- 3DIN rail mounting for versatile installation.
- 4Suitable for temperatures from -60 to 105°F.
- 5Compliant with RoHS regulations for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Number of jumper slots | 4 |
Width | 5.2?mm?/ 0.205?inches | Height | 93?mm?/ 3.661?inches |
Depth from upper-edge of DIN-rail | 51.7?mm?/ 2.035?inches | Potential Marking | L/N |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.264MJ |
Weight | 13.9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821403821 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc) |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 24A | Current at conductor cross-section (max.) mm2 | 28A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 20A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 20A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 20A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 440V |
Rated current (Ex e II) | 14A | Power loss, per pole (potential) | 0.766W |
Rated current I<sub>N</sub> for specified power loss | 24A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Total number of connection points | 2 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 2 |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
