Product Model
2002-3211/1000-675
Selling Points

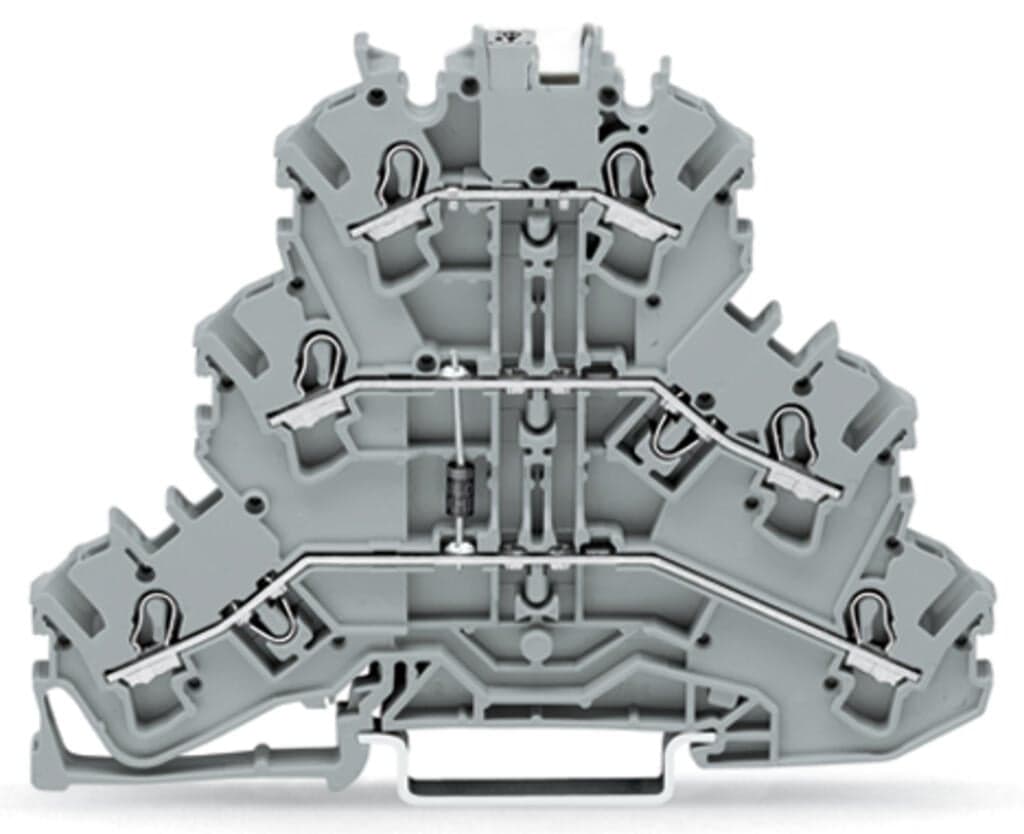

- 1Triple-deck design with 1N4007 diode for enhanced protection.
- 2Suitable for wire sizes 0.25mm² to 4mm² or #22AWG to #12AWG.
- 3Push-in CAGE CLAMP spring connections for secure wire management.
- 4Gray color with side/lateral and center marking slots for easy identification.
- 5Rated for 0.5A current and 600V voltage, UL approved.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 3 |
Number of levels | 3 | Width | 5.2?mm?/ 0.205?inches |
Height | 93.3?mm?/ 3.673?inches | Depth from upper-edge of DIN-rail | 69.5?mm?/ 2.736?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.364MJ |
Weight | 17.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454375775 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 5aa85ddd-3ac1-4f5e-9ba9-f17873845505 | SCIP notification number (Belgium) | 10306b09-16f5-4d02-8325-fc0f0963e360 |
SCIP notification number (Bulgaria) | cb2f0362-3a7e-4f33-b1ad-1061edb8faf2 | SCIP notification number (Czech Republic) | 16404e93-21d9-4103-954b-7f5260ace355 |
SCIP notification number (Denmark) | 2719d6d7-4e01-4206-9614-0485735773d6 | SCIP notification number (Finland) | ff5e6242-65bd-4a36-94eb-cda8168ca79c |
SCIP notification number (France) | d472780e-696f-40ec-b1cd-cf8e4596c0fd | SCIP notification number (Germany) | f74c9ad8-acbe-49b1-bf01-5699b4d865f6 |
SCIP notification number (Hungary) | 0c5a0f07-8051-45c4-a854-fb436b68cfea | SCIP notification number (Italy) | 08ddbd57-935b-4475-9682-a1b218b395c8 |
SCIP notification number (Netherlands) | 36b48560-8876-4e5f-83fc-698c2139d75e | SCIP notification number (Poland) | 369dffab-02ba-4701-8cfb-6dfddffd09ac |
SCIP notification number (Romania) | 847caf07-3213-4326-942b-2a8cae6f07a8 | SCIP notification number (Sweden) | eff6b1ec-137a-4c35-91ec-d98f5a741d44 |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Approvals per | UL 1059 | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
