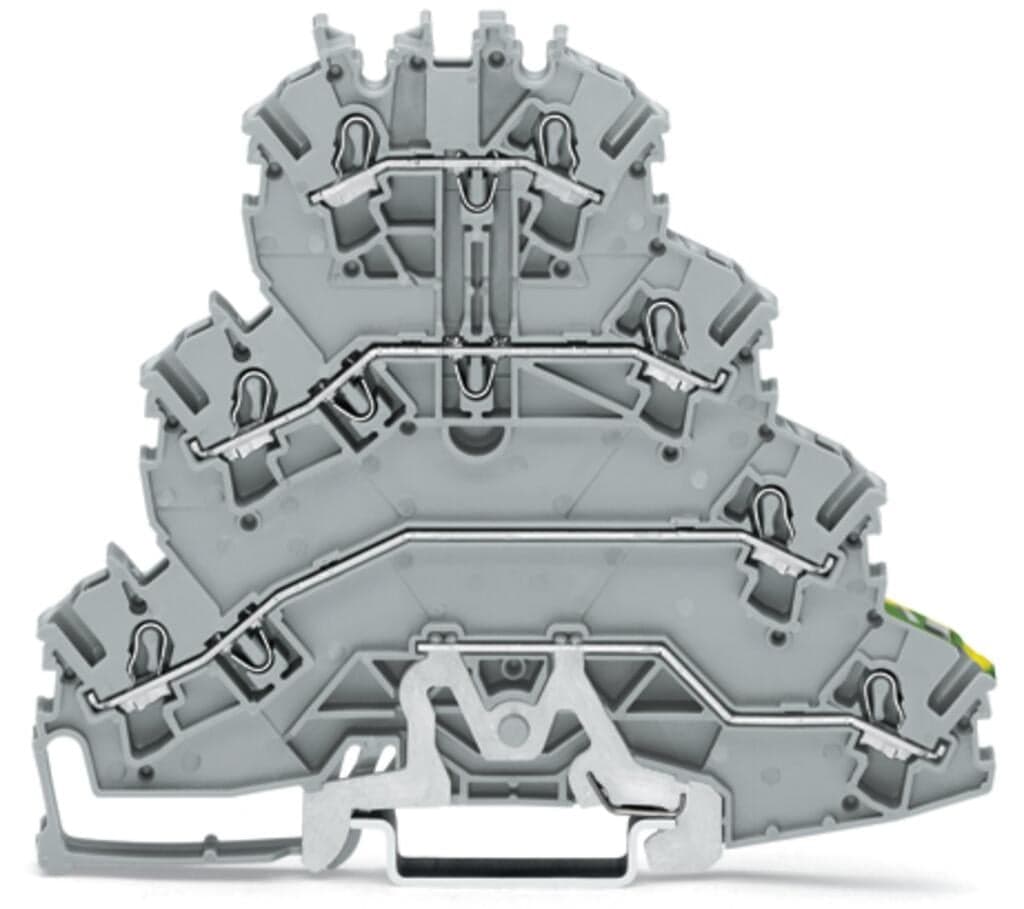

Product Model
2002-4157
Selling Points
- 1High Amperage Rating: 20A current capacity for reliable electrical connections.
- 2Compact Design: 4.075 in H x 0.205 in W dimensions for efficient use in tight spaces.
- 3Temperature Resilience: Operates from -60 to 105°F, ensuring durability in various environments.
- 4Versatile Wiring: Accommodates wire sizes from 22 to 12 AWG and 0.25 to 4 mm².
- 5Easy Installation: Push-in CAGE CLAMP connections simplify wiring setup and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 7 | Total number of potentials | 4 |
Number of levels | 4 | Number of jumper slots | 3 |
Width | 5.2?mm?/ 0.205?inches | Height | 103.5?mm?/ 4.075?inches |
Depth from upper-edge of DIN-rail | 96.8?mm?/ 3.811?inches | Potential Marking | L1 - L2 - L3 - PE |
Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.436MJ | Weight | 26g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821579441 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb) | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 20A |
Current at conductor cross-section (max.) mm2 | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 20A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 20A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 20A | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 19A |
Rated current (Ex e II) with jumper | 17A | Power loss, per pole (potential) | 1.596W |
Rated current I<sub>N</sub> for specified power loss | 20A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Total number of connection points | 2 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 2 |
Number of connection points 3 | 2 | Number of connection points 4 | 1 |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
