Product Model

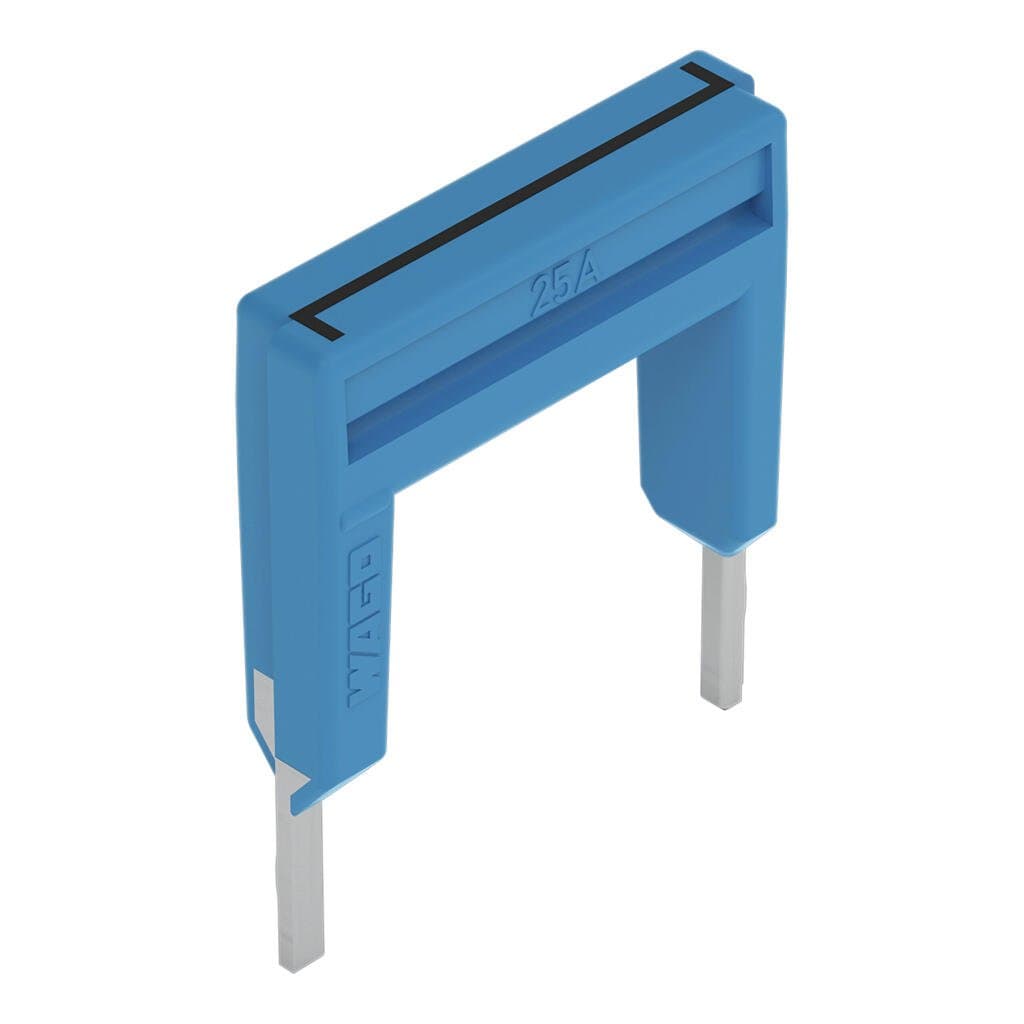

2002-424/000-006
Selling Points
- 1Industry-leading reliability with robust connectors.
- 2Easy installation and maintenance with snap-in technology.
- 3High current ratings for demanding applications.
- 4Durable and resistant to environmental stressors.
- 5Compatible with a wide range of industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10.9?mm?/ 0.429?inches | Height | 4.1?mm?/ 0.161?inches |
Depth | 18.5?mm?/ 0.728?inches | Jumper assignment | 1-4 |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) |
Flammability class per UL94 | V0 | Fire load | 0.012MJ |
Weight | 1.1g | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4066966320145 |
Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 25A |
Specifications may be subject to change without notice
