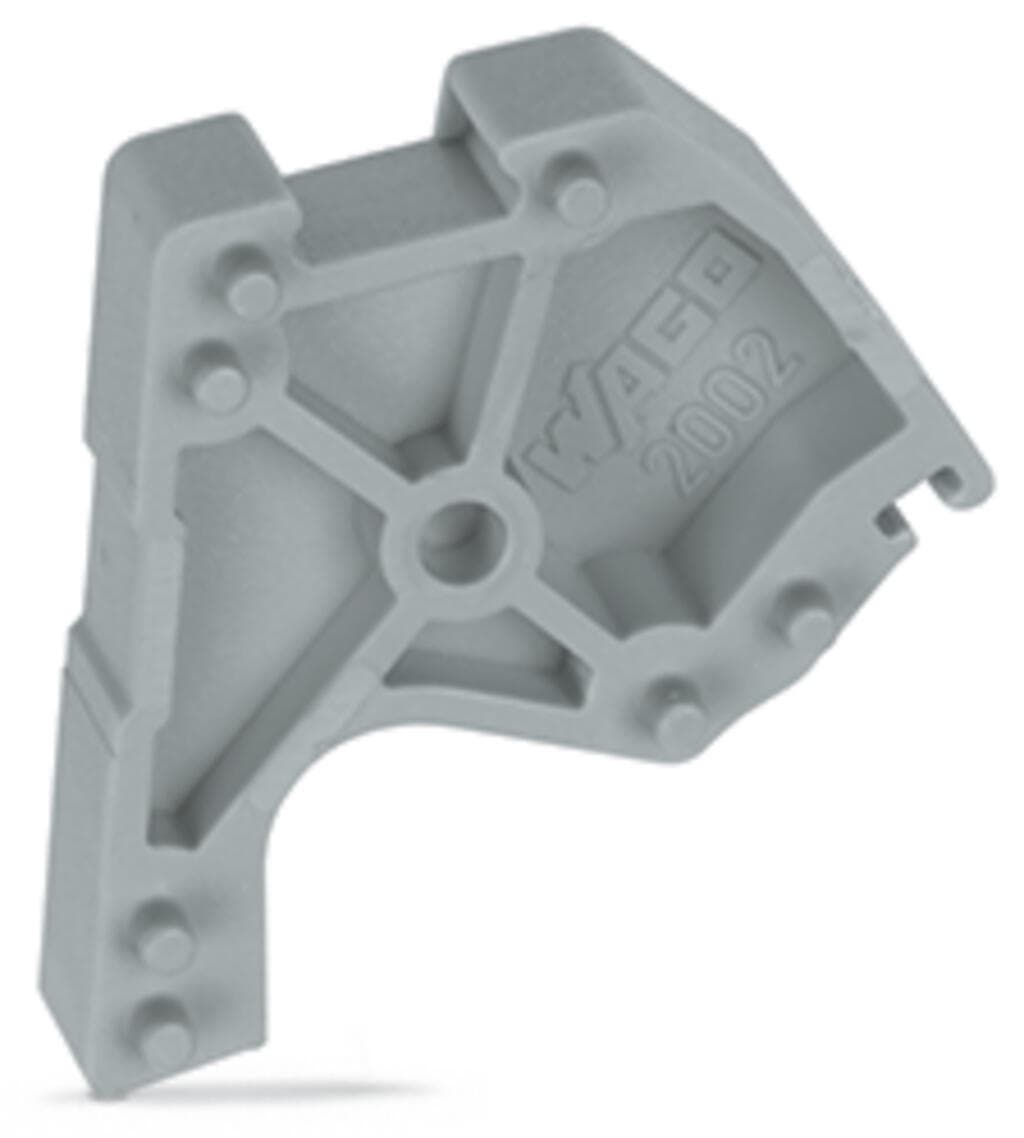

Product Model
2002-649
Selling Points
- 15.2mm wide, perfect for tight spaces.
- 2Made from high-quality materials, ensuring long-lasting performance.
- 3Tool-free and simple to use, reducing installation time.
- 4Suitable for bridging commoned terminal blocks in various electrical systems.
- 5Manufactured by WAGO, a trusted brand in the electrical industry.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 5.2?mm?/ 0.205?inches | Module width | 5.2?mm?/ 0.205?inches |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Flammability class per UL94 | V0 |
Fire load | 0.023MJ | Weight | 0.8g |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454997434 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
