Product Model

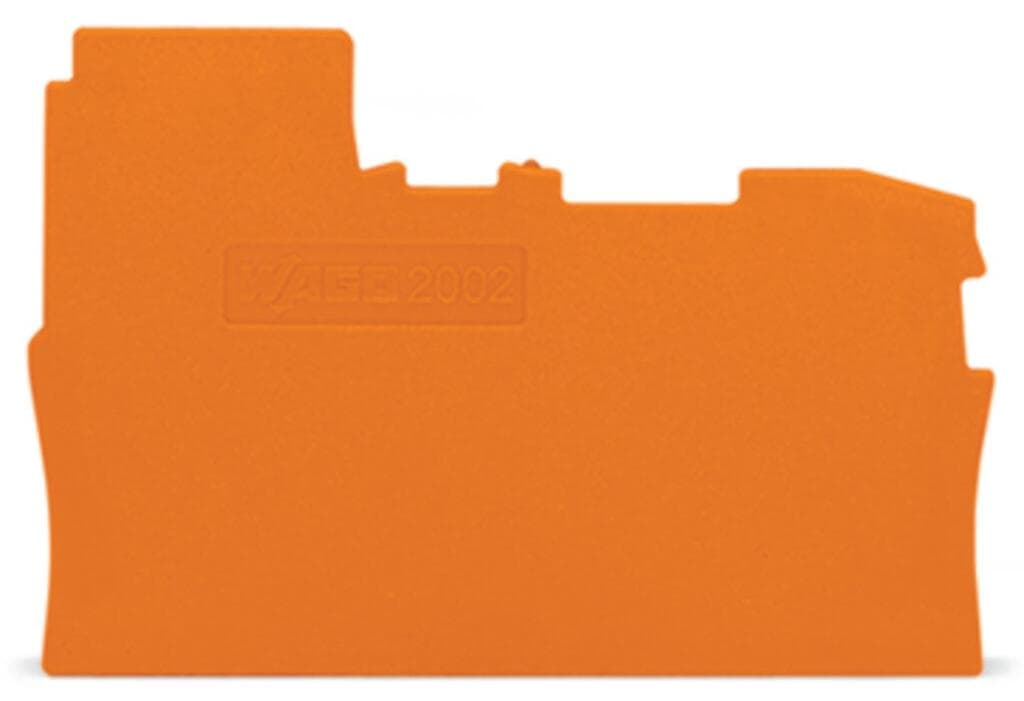

2002-7192
Selling Points
- 1Versatile Compatibility: Compatible with WAGO's TOPJOB S series DIN rail terminal blocks.
- 2Durable Construction: 0.8 mm thick, orange-colored plate for enhanced visibility and durability.
- 3Easy Mounting: Snap-in mounting type for quick and secure installation.
- 4High Fire Load: Meets fire safety standards with a fire load of 0.045 MJ.
- 5Compact Design: Measures 38 mm in height and 56 mm in depth, ideal for space-constrained installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 0.8?mm?/ 0.031?inches | Height | 56?mm?/ 2.205?inches |
Depth | 38?mm?/ 1.496?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.045MJ |
Weight | 1.5g | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918902632 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
