Product Model
2002-800/1000-411
Selling Points

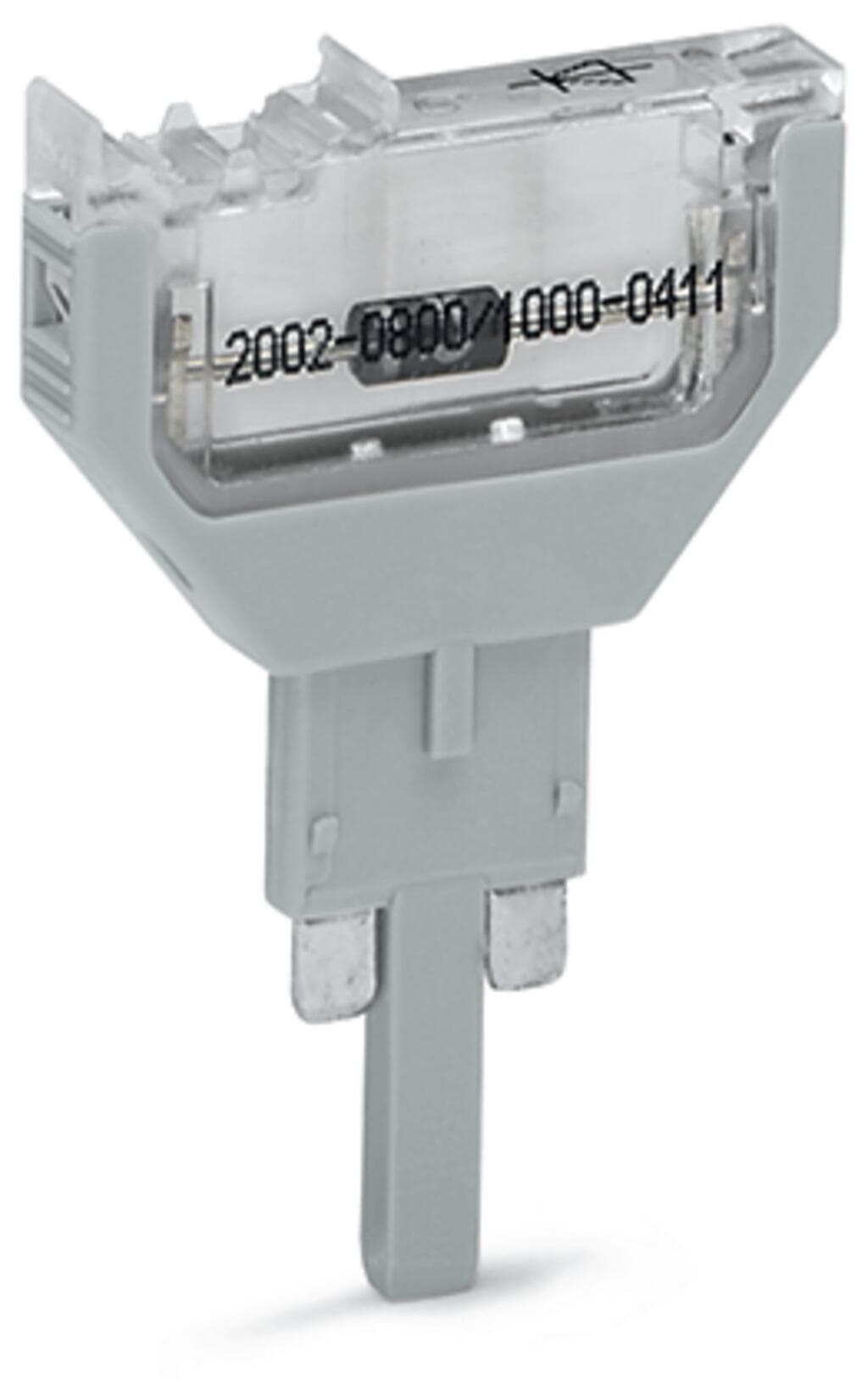

- 1High-Quality Diode Plug: The WAGO 2002-800/1000-411 diode plug features a 1N4007 diode for reliable voltage protection.
- 2Compact Design: Measuring 5.2 mm wide, this plug is perfect for tight spaces in industrial settings.
- 3Gray Housing: Made of durable polyamide (PA66) for excellent insulation and longevity.
- 4Operating Temperature: Designed to operate at a maximum temperature of 85°C, ensuring stable performance under various conditions.
- 5Versatile Compatibility: Compatible with WAGO's 2002 series carrier terminal blocks, offering easy integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 5.2?mm?/ 0.205?inches | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.111MJ |
Weight | 3.1g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-49 | eCl@ss 9.0 | 27-14-11-49 |
ETIM 9.0 | EC002018 | ETIM 8.0 | EC002018 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454948993 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | b8919147-4073-4998-bb2e-48b7d6d008e9 | SCIP notification number (Belgium) | ffc24d50-fc5d-4186-a91f-3a516ddb82a3 |
SCIP notification number (Bulgaria) | 27e92691-a401-468b-9fee-12c0f47aac10 | SCIP notification number (Czech Republic) | 3662a538-bbc8-42e6-be22-fe8f5af5cf23 |
SCIP notification number (Denmark) | 47471db5-26d4-4e11-9055-5d03a9a6ce19 | SCIP notification number (Finland) | bc0c7dd5-165e-456e-9e1b-b3a2bc4cfca2 |
SCIP notification number (France) | 0e19a394-5998-4548-92d4-f8717262714c | SCIP notification number (Germany) | 4366427c-ae43-4cb8-b567-53a315cdb89c |
SCIP notification number (Hungary) | 641f11a9-4164-40e9-aac4-ef8b8a194149 | SCIP notification number (Italy) | 5336760b-db9a-42bf-a63c-2386d3c37451 |
SCIP notification number (Netherlands) | fc1be457-3e3b-4db9-aecf-b3be19c4629a | SCIP notification number (Poland) | 44bdaca9-97ca-45ca-83b9-3b79747d19a2 |
SCIP notification number (Romania) | 85833a27-38ff-4659-85df-973671f9d621 | SCIP notification number (Sweden) | 80b6e838-d387-443c-82ce-f494493b0ffc |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V |
Specifications may be subject to change without notice
