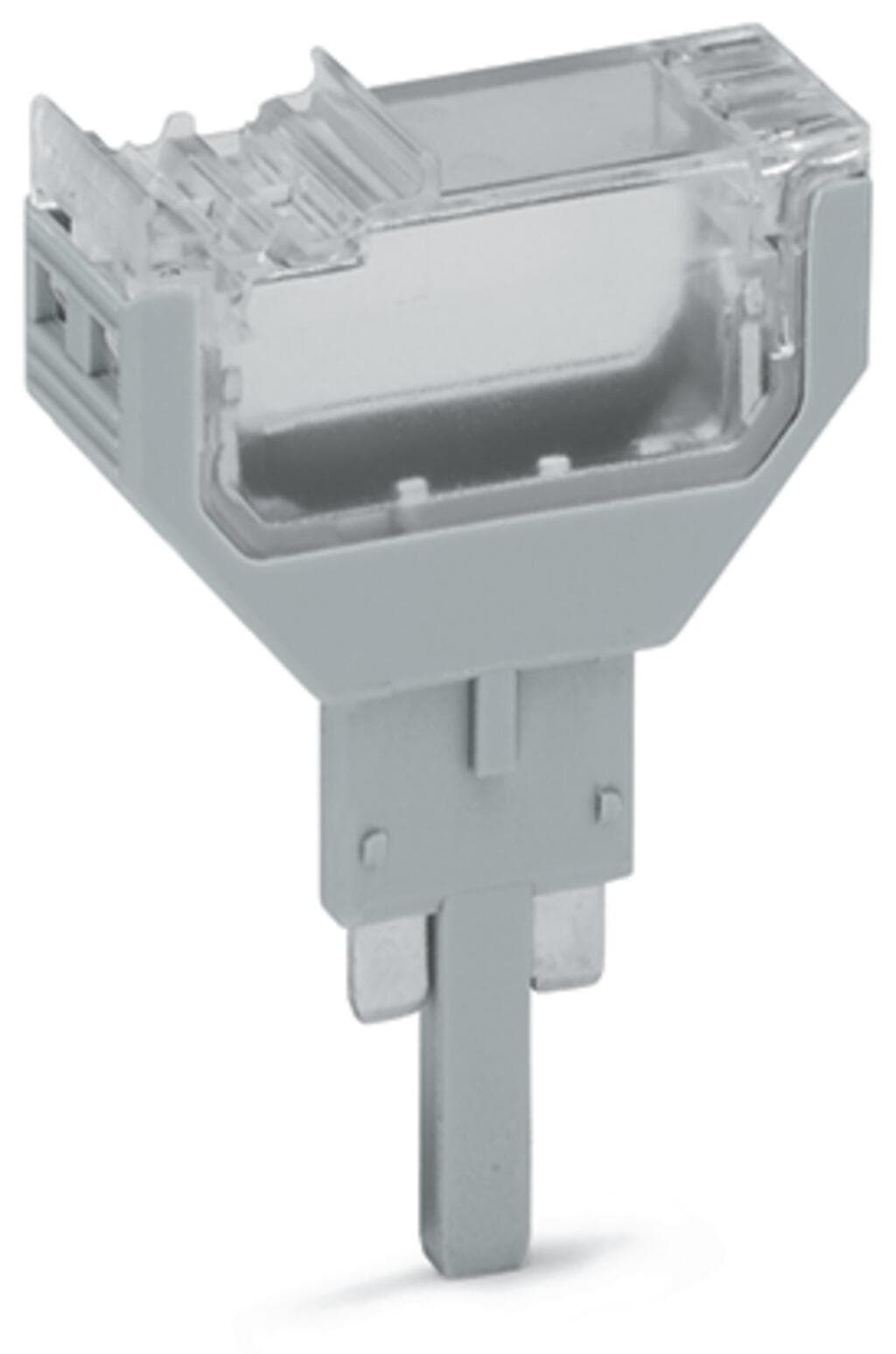

Product Model
2002-810
Selling Points
- 1RoHS Compliant: Meets environmental regulations for hazardous substances.
- 22-Pole Design: Ideal for connecting two wires in a terminal block setup.
- 3Gray Color: Easy to identify and integrate into your system.
- 4Polyamide Material: Durable and resistant to wear and tear.
- 5Suitable for Terminal Blocks: Compatible with WAGO's 2002 series carrier terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10.4?mm?/ 0.409?inches | Height | 29.6 mm / 1.165 inches |
Depth | 41.8 mm / 1.646 inches | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.118MJ |
Weight | 3.4g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-49 | eCl@ss 9.0 | 27-18-27-02 |
ETIM 9.0 | EC002018 | ETIM 8.0 | EC002018 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454857776 | Customs tariff number | 8547200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
