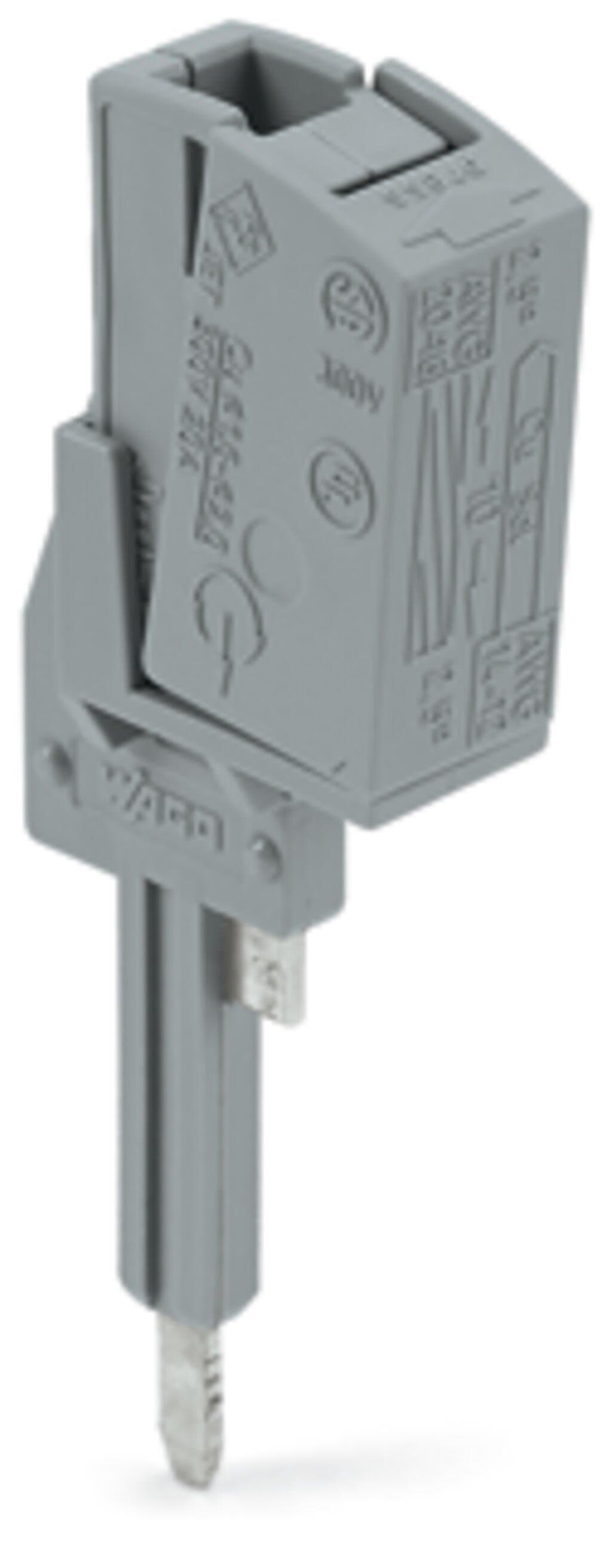

Product Model
2003-499
Selling Points
- 1Secure connectivity with CAGE-CLAMP spring connections.
- 2Rated for 16A current and 6 kV surge voltage.
- 3Compatible with 2003-6641 and 2003-6640 multilevel installation terminal blocks.
- 4Designed for vertical test slots with 2-pole configuration.
- 5Made from durable Polyamide (PA66) material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.064MJ |
Weight | 3.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002555 | ETIM 8.0 | EC002555 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821322115 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 16A |
Connection technology | CAGE CLAMP? | Solid conductor | 0.5 … 2.5?mm2?/ 20 … 16?AWG |
Stranded conductor | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.5 … 2.5?mm2?/ 20 … 16?AWG |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
