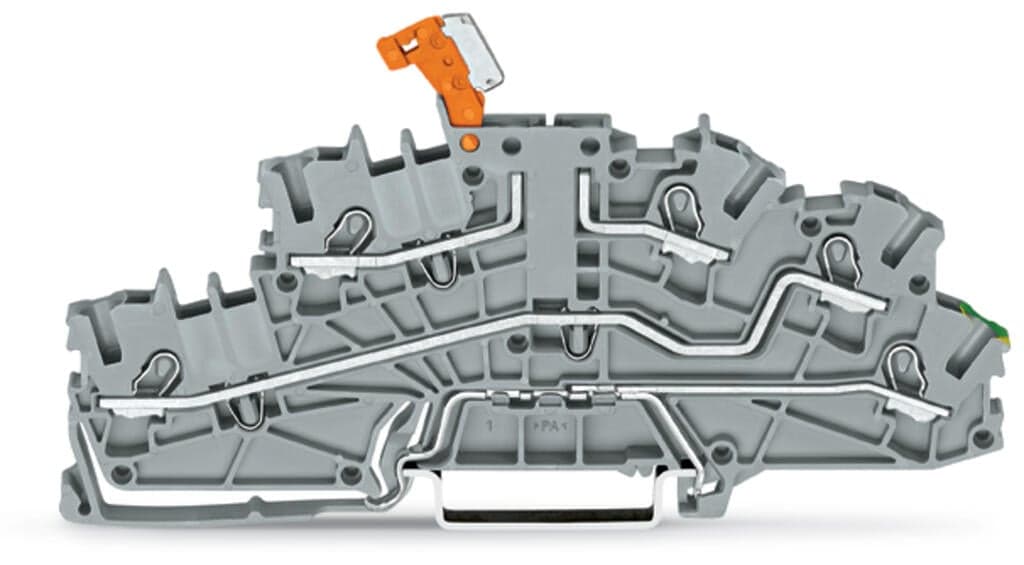

Product Model
2003-6644
Selling Points
- 1Connects conductors up to 12-22 AWG with ease.
- 2Easy to disconnect and reconnect without damaging the terminal.
- 3Securely connects copper conductors with a simple push-in action.
- 4Suitable for various electrical installations, including rail-mounted systems.
- 5Built with durable materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 5 | Total number of potentials | 3 |
Number of levels | 3 | Width | 5.2?mm?/ 0.205?inches |
Height | 110?mm?/ 4.331?inches | Depth from upper-edge of DIN-rail | 45.2?mm?/ 1.78?inches |
Potential Marking | LTi/L/PE | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.316MJ | Weight | 20.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-25 |
eCl@ss 9.0 | 27-14-11-25 | ETIM 9.0 | EC001329 |
ETIM 8.0 | EC001329 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821654292 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings | Potential - potential | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 20A | Current at conductor cross-section (max.) mm2 | 25A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings per 2 | IEC/EN 60947-7-1 |
Rated voltage (III/3) 2 | 400V | Rated surge voltage (III/3) 2 | 6kV |
Rated current 2 | 20A | Current at conductor cross-section (max.) 2 | 25A |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 20A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 20A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 20A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Power loss, per pole (potential) | 0.532W |
Rated current I<sub>N</sub> for specified power loss | 20A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
