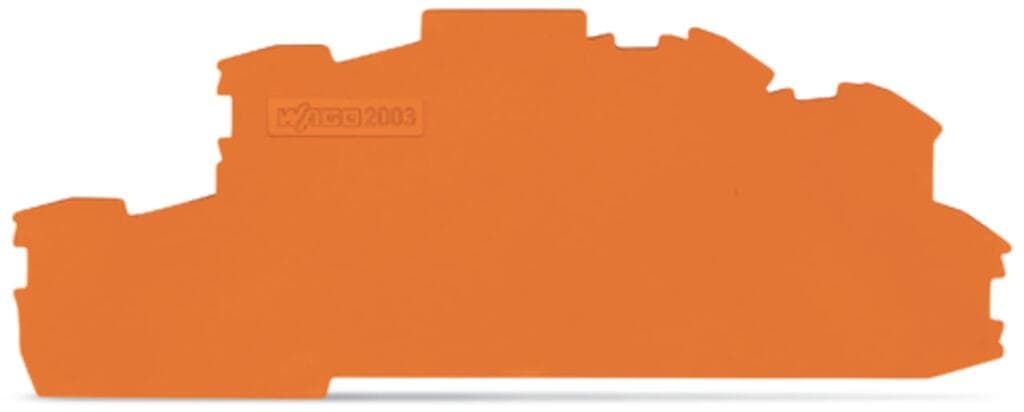

Product Model
2003-6692
Selling Points
- 1High-Quality Construction: Made from durable materials for long-lasting performance.
- 20.8 mm Thickness: Provides optimal thickness for various electrical applications.
- 3Orange Color: Easily identifiable in any electrical setup.
- 40.099 MJ Fire Load: Meets stringent fire safety standards.
- 5Snap-On Compatible: Designed for seamless integration with Snap-On mounted systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 0.8?mm?/ 0.031?inches | Height | 110?mm?/ 4.331?inches |
Depth | 44.3?mm?/ 1.744?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.099MJ |
Weight | 3.4g | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821322108 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
