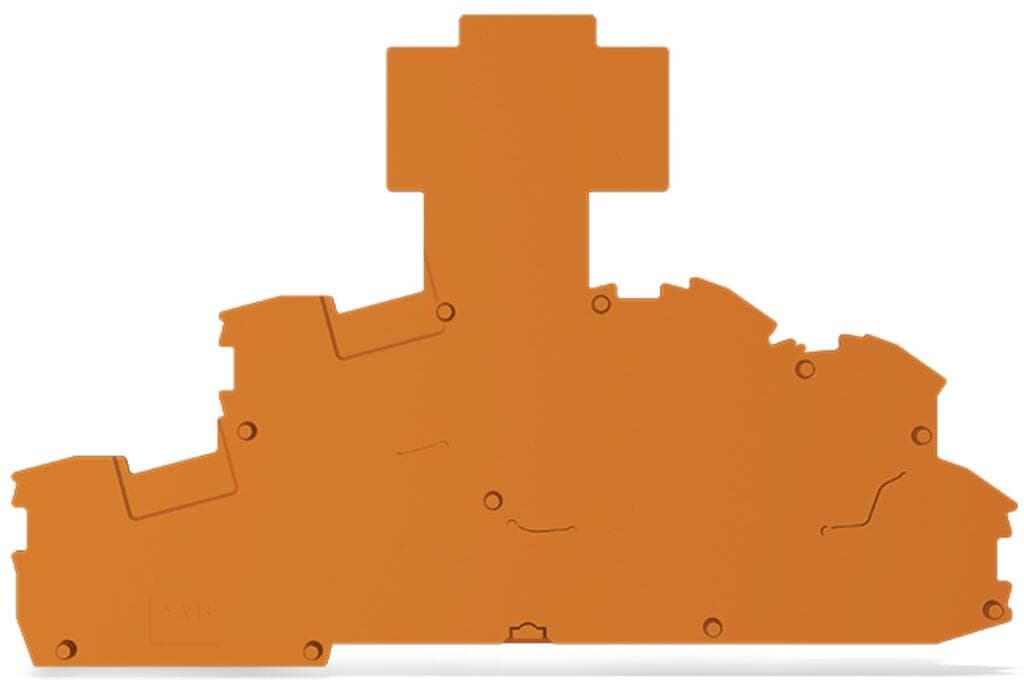

Product Model
2003-6694
Selling Points
- 1High-quality material: Made from durable polyamide (PA66) for reliable performance.
- 2V0 flammability rating: Meets stringent safety standards with a V0 rating per UL94.
- 3RoHS compliant: Environmentally friendly, compliant with RoHS regulations.
- 4Snap-on mounting type: Easy installation with snap-on mounting for quick setup.
- 5Industrial-grade dimensions: 1 mm thick, 70.6 mm depth, and 110 mm height for precise fitment in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 110?mm?/ 4.331?inches |
Depth | 70.6?mm?/ 2.779?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 4.9g |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143509800 | Customs tariff number | 85389099990 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
