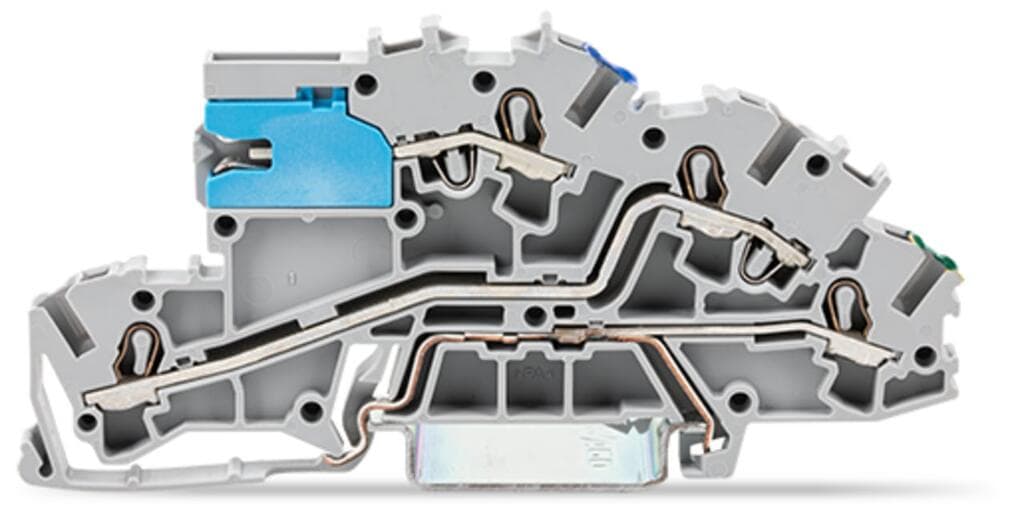

Product Model
2003-7641
Selling Points
- 1High-Performance Connectivity: Secure wire connections with WAGO's industry-proven spring pressure technology.
- 2Multilevel Design: Accommodates four wires with a nominal cross-section of 2.5mm², suitable for wire sizes 0.25mm² to 4mm².
- 3Durable Construction: Made from polyamide (PA66) insulation material for long-lasting performance.
- 4Easy Installation: Push-in CAGE CLAMP connections simplify wiring without tools.
- 5Compliant with Standards: Meets overvoltage category III / Pollution degree 3 (III / 3) and is RoHS compliant.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 5 | Total number of potentials | 3 |
Number of levels | 3 | Width | 5.2?mm?/ 0.205?inches |
Height | 96?mm?/ 3.78?inches | Depth from upper-edge of DIN-rail | 42.3?mm?/ 1.665?inches |
Potential Marking | NT/L/PE | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.246MJ | Weight | 16.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-25 |
eCl@ss 9.0 | 27-14-11-25 | ETIM 9.0 | EC001329 |
ETIM 8.0 | EC001329 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918925587 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings | Potential - potential | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 24A | Current at conductor cross-section (max.) mm2 | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings per 2 | IEC/EN 60947-7-1 |
Rated voltage (III/3) 2 | 400V | Rated surge voltage (III/3) 2 | 6kV |
Rated current 2 | 24A | Current at conductor cross-section (max.) 2 | 32A |
Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 24A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
