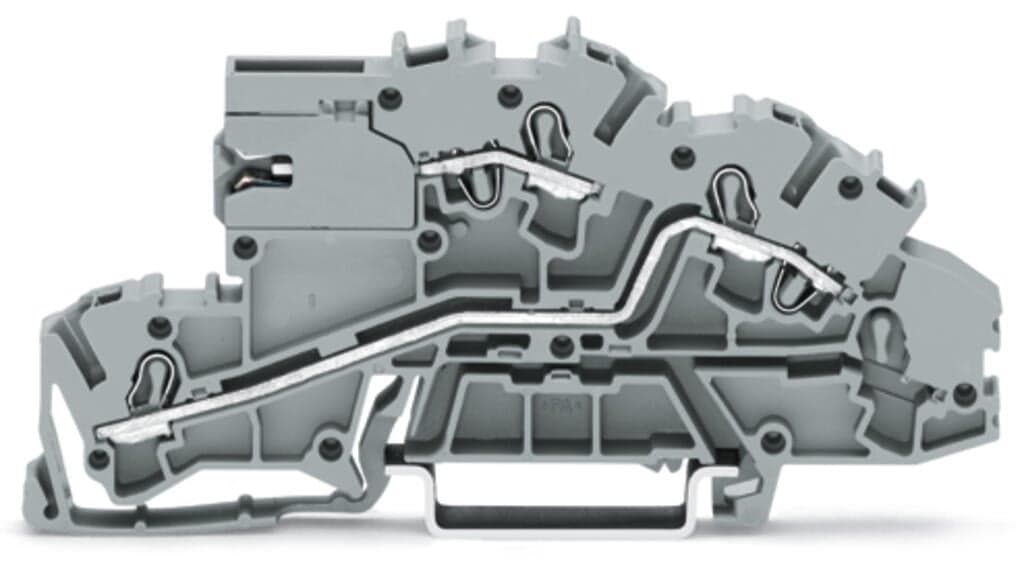

wago 2003-7659

Selling Points

  • 1Built to withstand harsh environments with excellent long-term consistency.
  • 2Push-in termination makes installation quick and efficient.
  • 3Ensures reliable and secure connections in various applications.
  • 4Specifically designed for applications requiring chassis ground.
  • 5Meets international standards for safety and performance.
Product Details
2003-7659
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
3
Total number of potentials
2
Number of levels
3
Width
5.2?mm?/ 0.205?inches
Height
96?mm?/ 3.78?inches
Depth from upper-edge of DIN-rail
42.3?mm?/ 1.665?inches
Potential Marking
LT/L
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.245MJ
Weight
13.9g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
Product Group
22 (TOPJOB S)
eCl@ss 10.0
27-14-11-25
eCl@ss 9.0
27-14-11-25
ETIM 9.0
EC001329
ETIM 8.0
EC001329
ECCN
NO US CLASSIFICATION
PU (SPU)
50?pcs
Packaging type
box
Country of origin
DE
GTIN
4045454792749
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings
Potential - potential
Ratings per
IEC/EN 60947-7-1
Rated voltage (III / 3)
250V
Rated impulse voltage (III / 3)
4kV
Rated current
24A
Current at conductor cross-section (max.) mm2
32A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Ratings per 2
IEC/EN 60947-7-1
Rated voltage (III/3) 2
400V
Rated surge voltage (III/3) 2
6kV
Rated current 2
24A
Current at conductor cross-section (max.) 2
32A
Power loss, per pole (potential)
0.766W
Rated current I<sub>N</sub> for specified power loss
24A
Resistance value for specified, current-dependent power loss
0.001Ω
Connection technology
Push-in CAGE CLAMP?
Actuation type
Operating tool
Connectable conductor materials
Copper
Nominal cross-section
2.5 mm2
Solid conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Solid conductor; push-in termination
0.75 … 4?mm2?/ 18 … 12?AWG
Fine-stranded conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with ferrule; push-in termination
1 … 2.5?mm2?/ 18 … 14?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
10 … 12?mm?/ 0.39 … 0.47?inches
Wiring direction
Front-entry wiring

Specifications may be subject to change without notice
