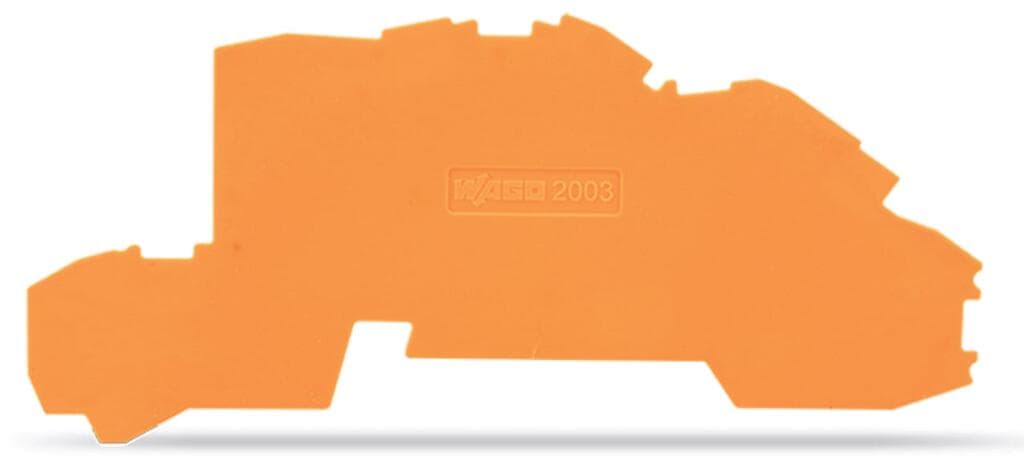

Product Model
2003-7692
Selling Points
- 1Ensures safe and organized electrical installations with insulation and separation.
- 20.8 mm thick, durable construction.
- 3Orange color for easy identification.
- 4Compatible with TOPJOB S Series terminal blocks.
- 5Meets UL94 V0 flammability standards for fire safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 0.8?mm?/ 0.031?inches | Height | 96?mm?/ 3.78?inches |
Depth | 42.3?mm?/ 1.665?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.087MJ |
Weight | 2.8g | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4044918925648 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
