Product Model

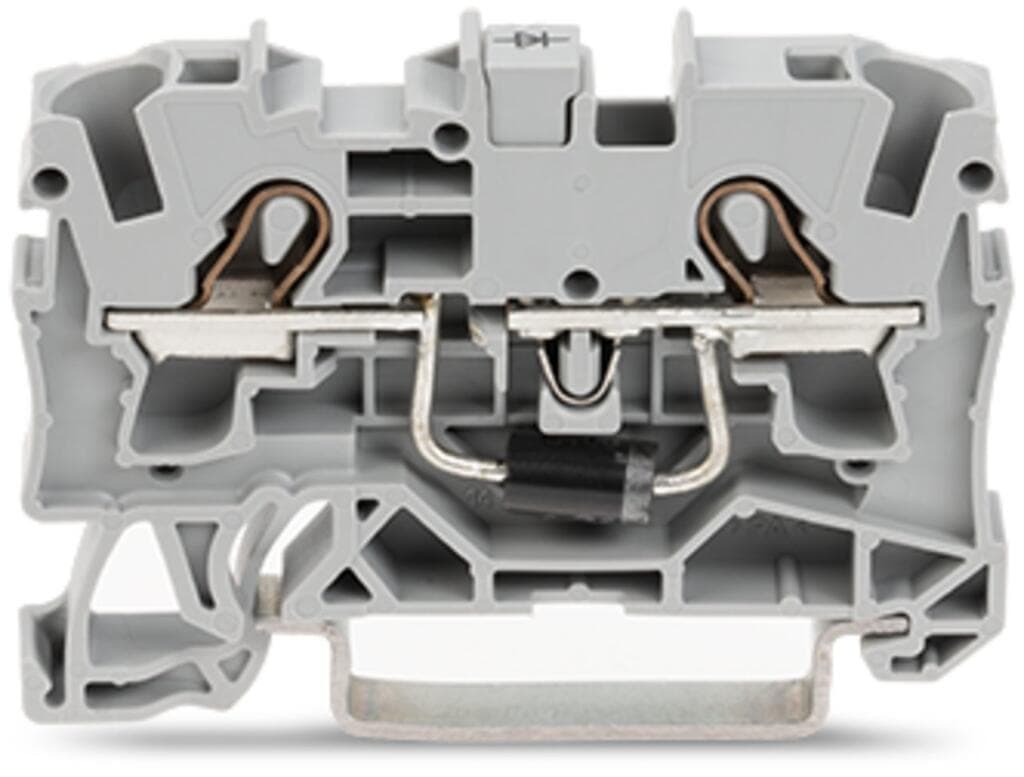

2004-1211/1000-400
Selling Points
- 1Compact Design: Gray housing with a width of 6.2mm, perfect for DIN-rail mounting.
- 2Versatile Connectivity: Supports wire sizes from 0.5mm² to 6mm² (#20AWG to #10AWG).
- 3Robust Construction: Made of polyamide (PA66) for insulation and durability.
- 4Efficient Clamping: Utilizes Push-in CAGE CLAMP spring connections for secure wire retention.
- 5High Current Capacity: Rated for up to 1.5A current, ensuring reliable performance in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6.2?mm?/ 0.244?inches |
Height | 52.3?mm?/ 2.059?inches | Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.142MJ |
Weight | 8.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821230946 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | e3f22a50-d39f-497f-a932-bc73f9be6db9 |
SCIP notification number (Belgium) | 73371259-169a-439b-9275-7ab47b3ae198 | SCIP notification number (Bulgaria) | 0a9dce73-7d50-4719-9375-947215914a8b |
SCIP notification number (Czech Republic) | 4ab06938-c53e-4e13-90b8-cb6f8ea0ed88 | SCIP notification number (Denmark) | bc6f16b1-1522-4b5a-aeed-4b92cd9a31ee |
SCIP notification number (Finland) | dd130040-799f-4119-8767-95f588cad1e1 | SCIP notification number (France) | ba3ed1e7-8c9d-4b10-913c-5af205bdb44c |
SCIP notification number (Germany) | f6229b2a-3563-4ab5-a74a-122295206c1b | SCIP notification number (Hungary) | 495333c4-f0be-4de5-baee-e99cc4392475 |
SCIP notification number (Italy) | f44f9176-db92-41d0-ba6a-a9b461af582c | SCIP notification number (Netherlands) | 3261f29f-501a-402e-a889-a6404adca359 |
SCIP notification number (Poland) | be6a11d5-7b81-4f82-a17e-bb948f9614d0 | SCIP notification number (Romania) | ec9e90e0-c9e4-4b36-901e-2f63f26d0595 |
SCIP notification number (Sweden) | de798db0-b9f2-430f-b5f8-b862ac21ebd6 | Nominal voltage | 250V |
Reverse voltage | 1,000V | Continuous current (max.) | 1.5 A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 |
Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Solid conductor; push-in termination | 1.5 … 6?mm2?/ 14 … 10?AWG |
Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5 … 4?mm2?/ 18 … 12?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
