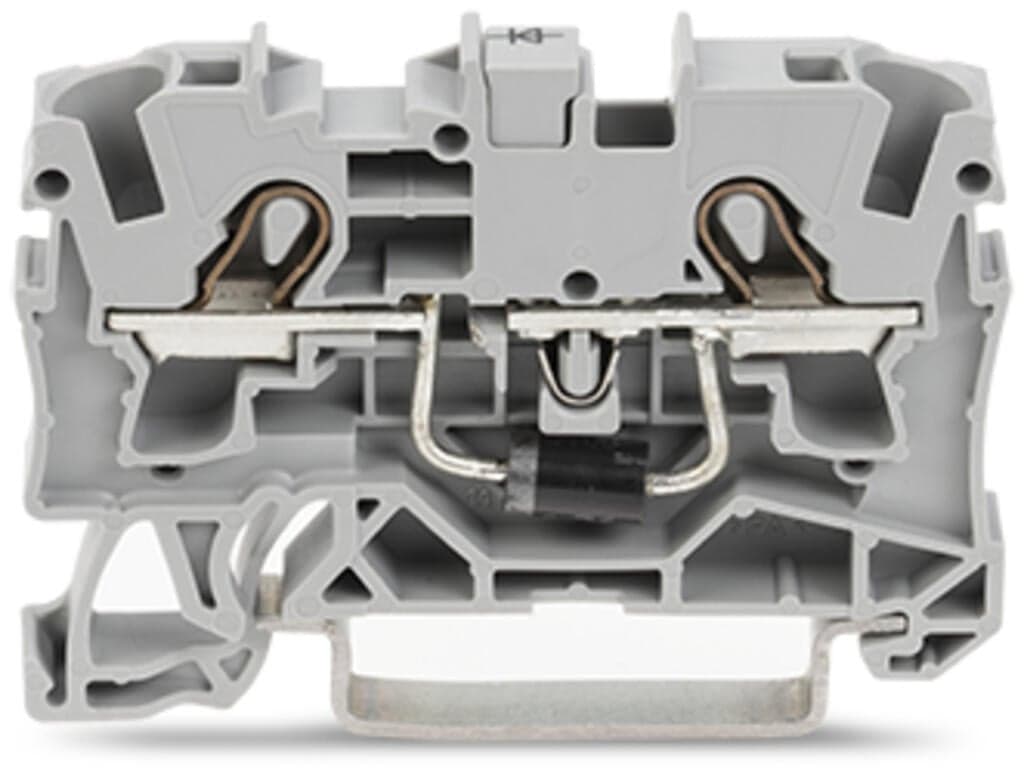

Product Model
2004-1211/1000-401
Selling Points
- 1Push-in CAGE CLAMP technology ensures quick and secure connections.
- 2Made from high-quality polyamide (PA66) for excellent insulation and durability.
- 3Suitable for DIN-rail 35 x 15 and 35 x 7.5, supporting various electrical configurations.
- 4Rated for 1.5A, making it ideal for demanding applications.
- 5Front-entry wiring and side/center marking slots simplify installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6.2?mm?/ 0.244?inches |
Height | 52.3?mm?/ 2.059?inches | Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.142MJ |
Weight | 8.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821230953 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 12874ec2-c7e9-4fe8-8bd2-76ed484bcb6e |
SCIP notification number (Belgium) | ab190a89-d7a7-40ef-b602-594a402e2890 | SCIP notification number (Bulgaria) | 58069aeb-6d46-4b49-b252-cb07deabf5c1 |
SCIP notification number (Czech Republic) | b07fc5ca-62ea-461a-bad0-4e8cc24141ee | SCIP notification number (Denmark) | 74dade8d-ff2e-4202-b3c5-c1754841c98c |
SCIP notification number (Finland) | 60e42887-e407-4027-98ab-ee25975d66ce | SCIP notification number (France) | 3e589af5-24a9-4537-b3f0-d6c681daeccd |
SCIP notification number (Germany) | cbb87f3c-5b21-4352-973b-01fb0261c247 | SCIP notification number (Hungary) | 7f2dc519-f2fe-4f2e-9613-20ea2d5319b8 |
SCIP notification number (Italy) | 022bba25-4d3e-4ccb-ba49-1903b1da4403 | SCIP notification number (Netherlands) | ed14c838-92c7-4ad6-9b95-8dfc7dfaab50 |
SCIP notification number (Poland) | b8ae8649-5574-4431-afab-e952fc490b2c | SCIP notification number (Romania) | df57adfc-d8ed-4171-b1e6-8f53903d74b3 |
SCIP notification number (Sweden) | 4d94d997-4154-43a8-b87b-ab04509ffbe4 | Nominal voltage | 250V |
Reverse voltage | 1,000V | Continuous current (max.) | 1.5 A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 |
Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Solid conductor; push-in termination | 1.5 … 6?mm2?/ 14 … 10?AWG |
Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5 … 4?mm2?/ 18 … 12?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
