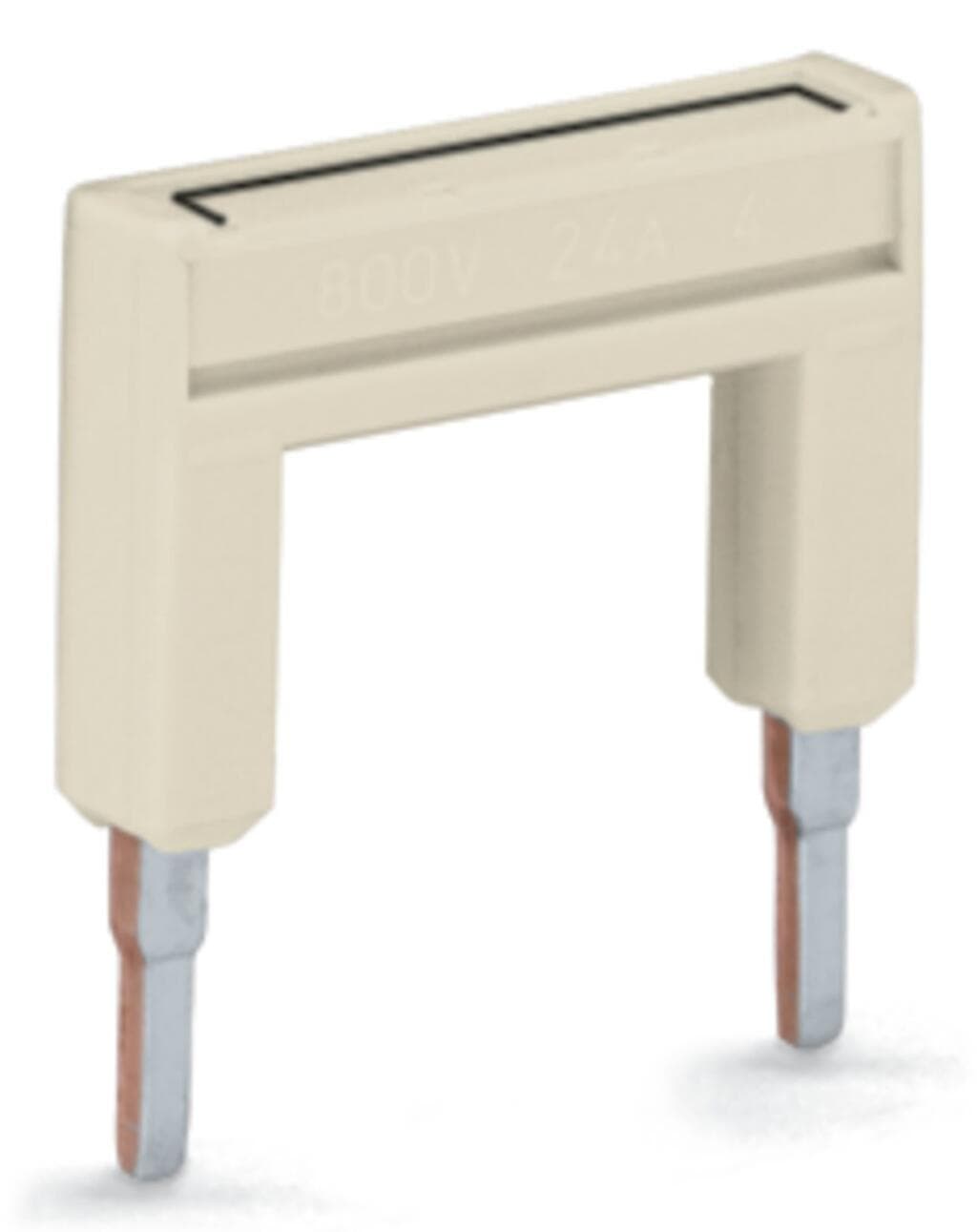

Product Model
2004-433
Selling Points
- 1Insulated Push-In Design: Ensures safe and reliable electrical connections.
- 2Nominal Current 32 A: Supports high current applications with minimal risk of short circuits.
- 3Light Gray Color: Easy to identify in various industrial settings.
- 4Compact Dimensions: 16.5 mm width, 4.1 mm height, and 19 mm depth for space-efficient installation.
- 5Durable Construction: Protects sensitive systems from electrical failures and extends equipment lifespan.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 16.5?mm?/ 0.65?inches | Height | 4.1?mm?/ 0.161?inches |
Depth | 19?mm?/ 0.748?inches | Jumper assignment | 1-3 |
Design | spanning | Note (material data) | Information on material specifications can be found here |
Color | light gray | Fire load | 0.01MJ |
Weight | 1.7g | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4044918583077 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 800V |
Rated current | 32A | Rated current (Ex e II) | 30A |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
