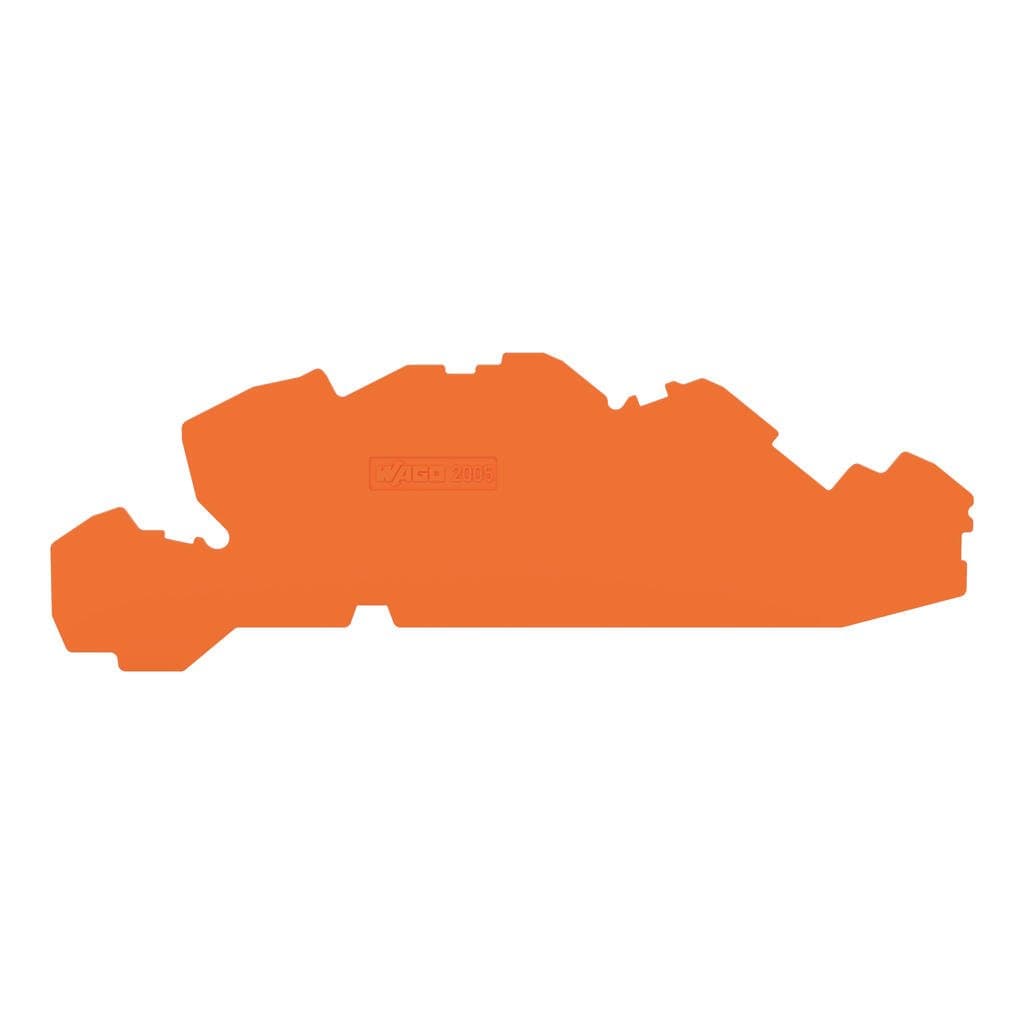

Product Model
2005-7692
Selling Points
- 1Universal connection for conductors larger than 2 AWG (35 mm²).
- 2Tool-free, twist-free terminations for solid and rigid stranded conductors.
- 3Gastight crimped connections ensure secure and reliable wiring.
- 4Suitable for various conductor types, including fine-stranded and pin terminals.
- 5Easy to install with hands-free wiring and integrated latch system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 123.9?mm?/ 4.878?inches |
Depth | 41.7?mm?/ 1.642?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.116MJ |
Weight | 3.9g | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454448172 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
