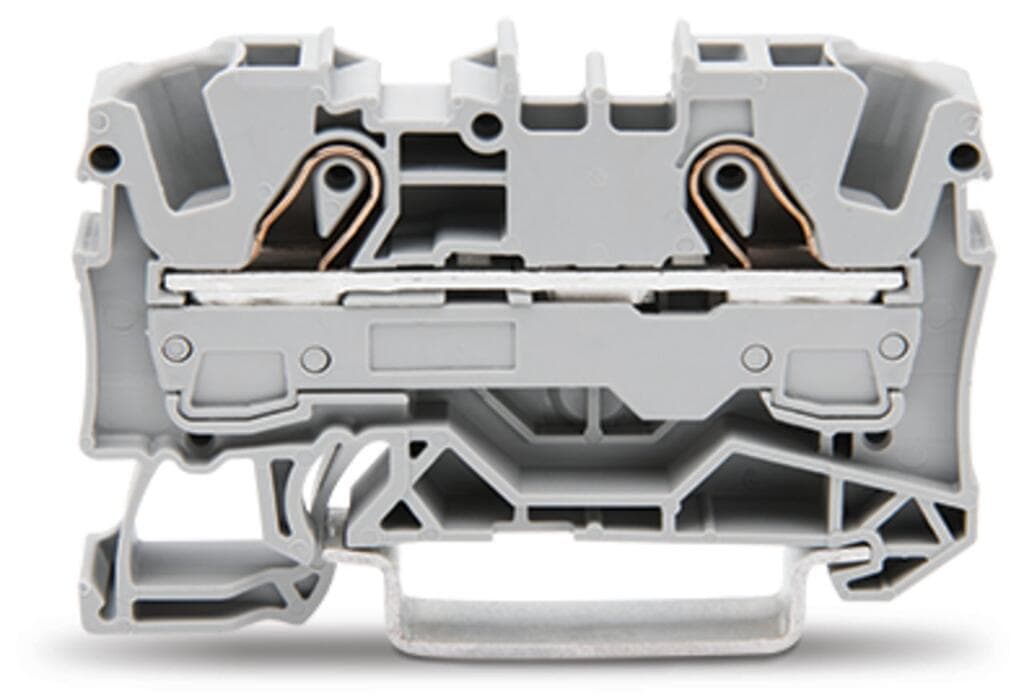

Product Model
2006-1201
Selling Points
- 1Designed with push-in CAGE CLAMP technology for quick and secure wire termination.
- 2Supports up to 800 VAC, making it suitable for various industrial applications.
- 3Measures 1.295 in H x 0.295 in W x 2.264 in D, ideal for space-saving installations.
- 4Made from polyamide 6.6 material with a weight of 8.893 g, ensuring long-lasting performance.
- 5Compatible with DIN Rail mounting for easy integration into electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 7.5?mm?/ 0.295?inches | Height | 57.4?mm?/ 2.26?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Depth | 39.5 mm / 1.555 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.191MJ |
Weight | 9.8g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332999649 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 05 ATEX 1030 U / IECEx: PTB 05.0014U (Ex eb IIC Gb) |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 41A | Current at conductor cross-section (max.) mm2 | 57A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 50A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 50A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 50A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 50A |
Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Rated current (Ex e II) | 38A | Rated current (Ex e II) with jumper | 33A |
Power loss, per pole (potential) | 1.311W | Rated current I<sub>N</sub> for specified power loss | 41A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Solid conductor; push-in termination | 2.5 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
