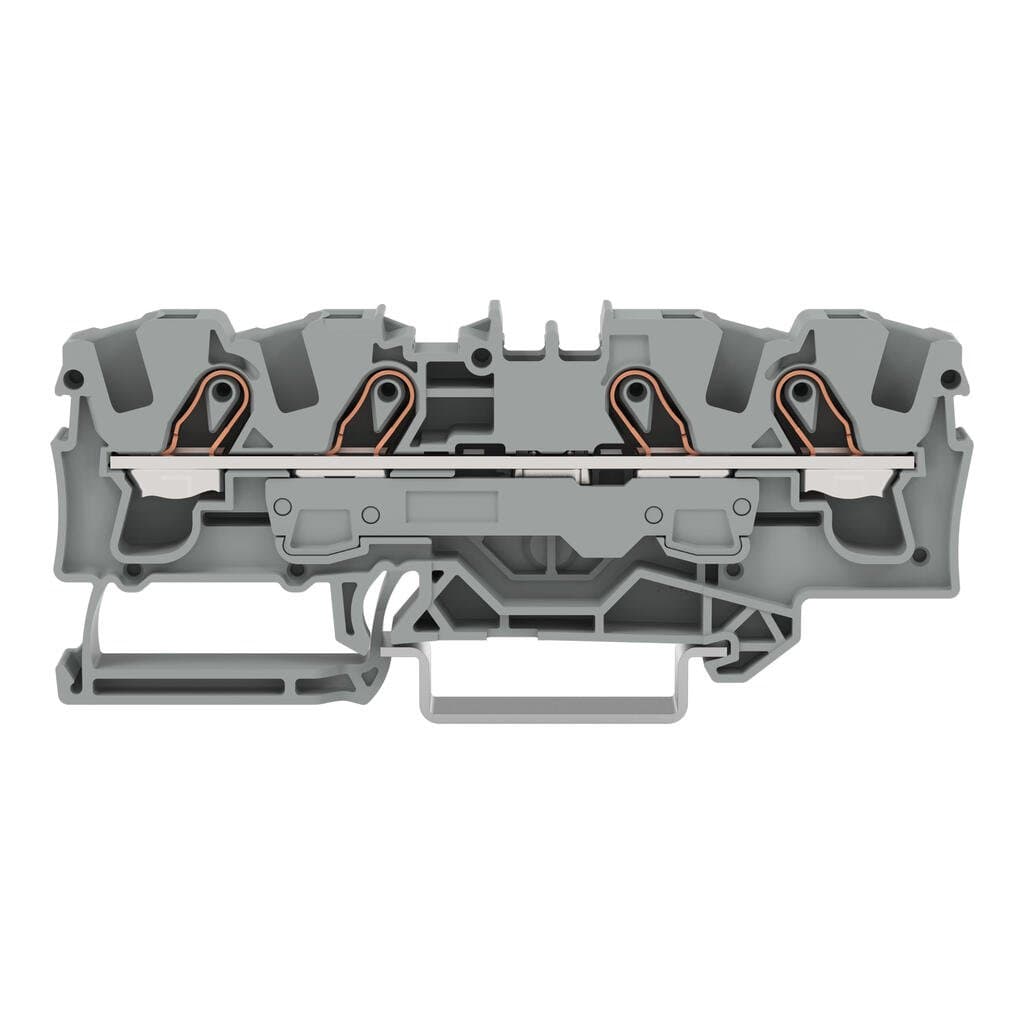

Product Model
2006-1403
Selling Points
- 1DIN Rail Compatibility: Designed for DIN rail 35 x 15 and 35 x 7.5 mounting.
- 2Ex e II Applications: Suitable for hazardous environments with Ex e II ratings.
- 3Push-in CAGE CLAMP: Easy and secure connection using push-in CAGE CLAMP technology.
- 4Red Color: Durable red color for clear visibility in industrial settings.
- 5High Current Rating: Rated for 41A, ensuring reliable performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 7.5 mm / 0.295 inches | Height | 89.3 mm / 3.516 inches |
Depth from upper-edge of DIN-rail | 32.9 mm / 1.295 inches | Depth | 39.5 mm / 1.555 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | red |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.284MJ |
Weight | 16.3g | Processing temperature | -35 … +85 °C |
Continuous operating temperature | -60 … +105 °C | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25 pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966596762 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | ATEX: PTB 05 ATEX 1030 U / IECEx: PTB 05.0014U (Ex eb IIC Gb) | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 41A |
Current at conductor cross-section (max.) mm2 | 57A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 50A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 50A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 50A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 50A | Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 36A |
Rated current (Ex e II) with jumper | 33A | Power loss, per pole (potential) | 1.311W |
Rated current I<sub>N</sub> for specified power loss | 41A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 6 mm2 |
Solid conductor | 0.5 … 10 mm2 / 20 … 8 AWG | Solid conductor; push-in termination | 2.5 … 10 mm2 / 14 … 8 AWG |
Stranded conductor | 0.5 … 10 mm2 / 20 … 8 AWG | Fine-stranded conductor | 0.5 … 10 mm2 / 20 … 8 AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm2 / 20 … 10 AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6 mm2 / 16 … 10 AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
