Product Model
2006-1407
Selling Points
- 1Ex e II Compliant: Designed for hazardous environments.

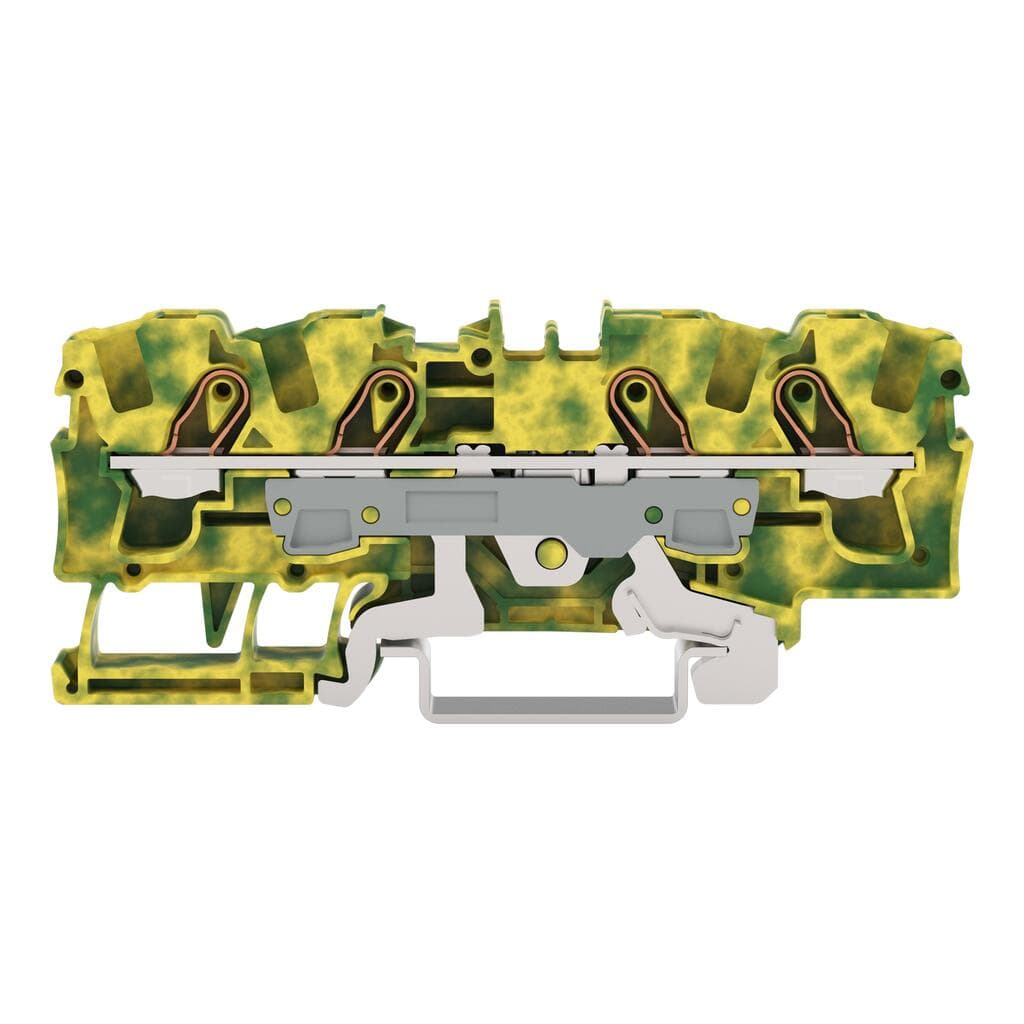

- 24-Conductor Ground Terminal Block: Ideal for multiple connections.
- 3Push-in CAGE CLAMP: Easy and secure wire connection.
- 4DIN-Rail Mounting: Versatile and space-efficient installation.
- 5Green-Yellow Color: Visually distinguishable for safety and organization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 7.5 mm / 0.295 inches | Height | 89.3 mm / 3.516 inches |
Depth from upper-edge of DIN-rail | 32.9 mm / 1.295 inches | Depth | 39.5 mm / 1.555 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.276MJ |
Weight | 24.4g | Processing temperature | -35 … +85 °C |
Continuous operating temperature | -60 … +105 °C | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25 pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966595642 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Ratings per | ATEX: PTB 05 ATEX 1030 U / IECEx: PTB 05.0014U (Ex eb IIC Gb) |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 36A |
Rated current (Ex e II) with jumper | 33A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 | Solid conductor | 0.5 … 10 mm2 / 20 … 8 AWG |
Solid conductor; push-in termination | 2.5 … 10 mm2 / 14 … 8 AWG | Fine-stranded conductor | 0.5 … 10 mm2 / 20 … 8 AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm2 / 20 … 10 AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6 mm2 / 16 … 10 AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
