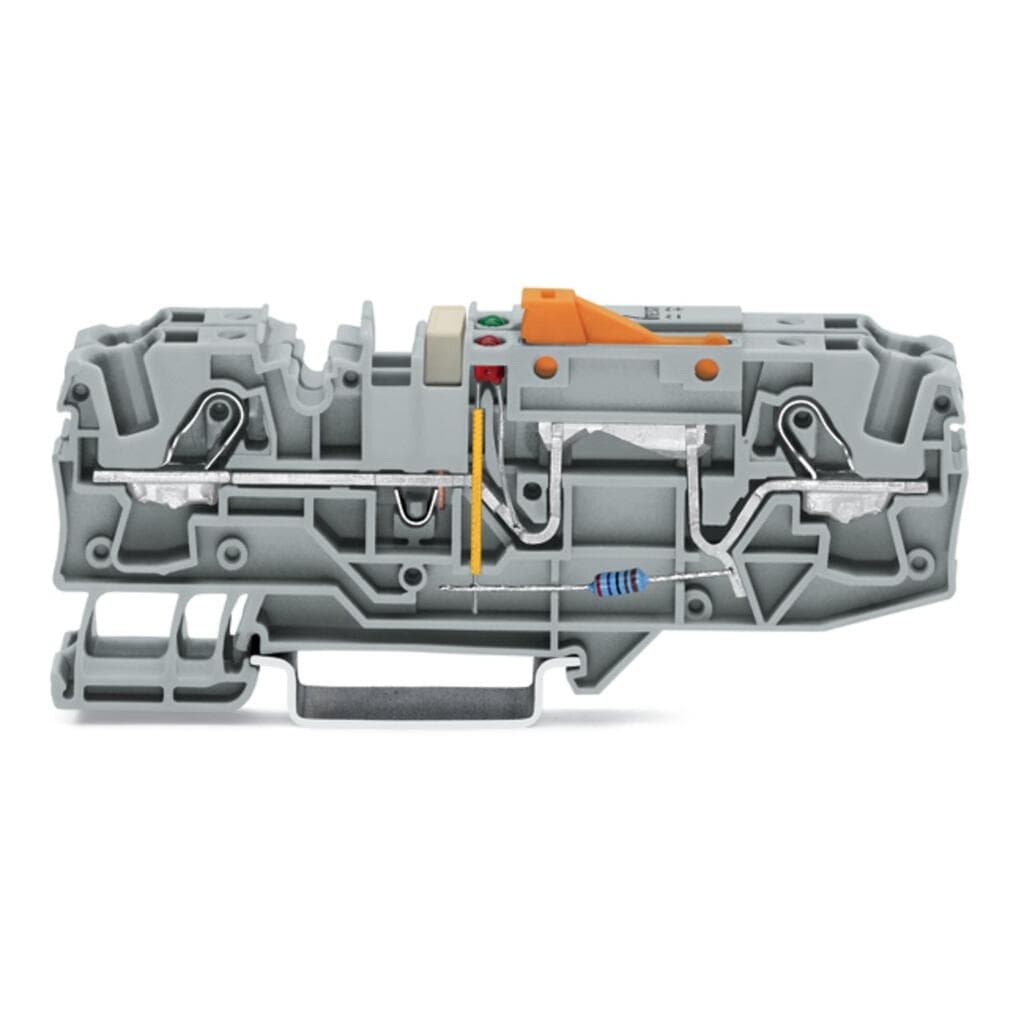

Product Model
2006-1671/1000-848
Selling Points
- 1Ground Conductor Disconnect: Easily disconnect ground conductors with the orange disconnect link.
- 2LED Indicator: Includes an LED indicator for 24Vdc operation status.
- 3Push-in CAGE CLAMP: Utilizes Push-in CAGE CLAMP spring connections for secure wire connections.
- 4DIN-35 Rail Mounting: Designed for DIN-35 rail mounting with a 15mm width.
- 5Versatile Wire Accommodation: Accommodates wire sizes from 0.5mm² to 10mm² or #20AWG to #8AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 15?mm?/ 0.591?inches | Height | 96.3?mm?/ 3.791?inches |
Depth from upper-edge of DIN-rail | 36.8?mm?/ 1.449?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.647MJ | Weight | 39.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-26 |
eCl@ss 9.0 | 27-14-11-26 | ETIM 9.0 | EC000902 |
ETIM 8.0 | EC000902 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 12?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4045454789848 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 5cc5bea9-7799-417c-a02d-3e3f0d55fff3 |
SCIP notification number (Belgium) | ff08c9cf-5e0f-4756-9c4e-efe74924f4e4 | SCIP notification number (Bulgaria) | fa6746b1-c169-4c3c-b340-59030e4ce5a0 |
SCIP notification number (Czech Republic) | 9be5f92a-ed0e-4129-a21d-1a87791092d9 | SCIP notification number (Denmark) | e8980ebf-0d9e-4af6-b380-32230bf69019 |
SCIP notification number (Finland) | a4e14acf-b0c3-4062-ad58-d09bcbf3fd2a | SCIP notification number (France) | 13bfb876-b24d-4396-ba2d-bb1d9d812999 |
SCIP notification number (Germany) | 059bb569-fb40-4173-97af-09d9cd417015 | SCIP notification number (Hungary) | 336ea94b-18ca-4edd-a0a6-2b796b8570f5 |
SCIP notification number (Italy) | 81243b9a-3d61-45dd-8a86-aeb632a5a73c | SCIP notification number (Netherlands) | a65613f7-9afc-4061-9cde-60d4f283e146 |
SCIP notification number (Poland) | 8b698134-0fb0-441a-a7b3-0827739cac81 | SCIP notification number (Romania) | a9a46dfd-8bcb-413e-b1ac-2f0e73d0f336 |
SCIP notification number (Sweden) | 44ad901a-2bbd-413e-aaf5-a3f4b78e4b6a | Blown fuse indication | 24 V |
Power loss, per pole (potential) | 0.702W | Rated current I<sub>N</sub> for specified power loss | 30A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Solid conductor; push-in termination | 2.5 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
