Product Model
2006-1681/1000-414
Selling Points
- 1High-Voltage Capability: Supports up to 800V with a wide conductor range of 0.14 to 1.5 mm².
- 2Durable Construction: Built with 0.7 mm thick end and intermediate plates for added strength.
- 3Versatile Configuration: Available in various configurations, including 4-conductor and double potential terminal blocks.
- 4Easy Installation: Features push-in termination for quick and secure connections.
- 5Comprehensive Accessories: Includes marking systems, jumper bars, and protective warning markers for complete system integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 2 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 7.5?mm?/ 0.295?inches | Height | 96.3?mm?/ 3.791?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.323MJ | Weight | 17.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-16 |
eCl@ss 9.0 | 27-14-11-16 | ETIM 9.0 | EC000899 |
ETIM 8.0 | EC000899 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821437802 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-3 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 25A |
Current at conductor cross-section (max.) mm2 | 30A | Blown fuse indication | 48 V |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
Ratings (note) 2 | Blade-style fuses: Observe touch-proof protection for 42?V and higher voltages! | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 48V | Rated current UL (Use Group B) | 30A |
Rated voltage UL (Use Group C) | 48V | Rated current UL (Use Group C) | 30A |
Rated voltage CSA (Use Group B) | 48V | Rated current CSA (Use Group B) | 30A |
Rated voltage CSA (Use Group C) | 48V | Rated current CSA (Use Group C) | 30A |

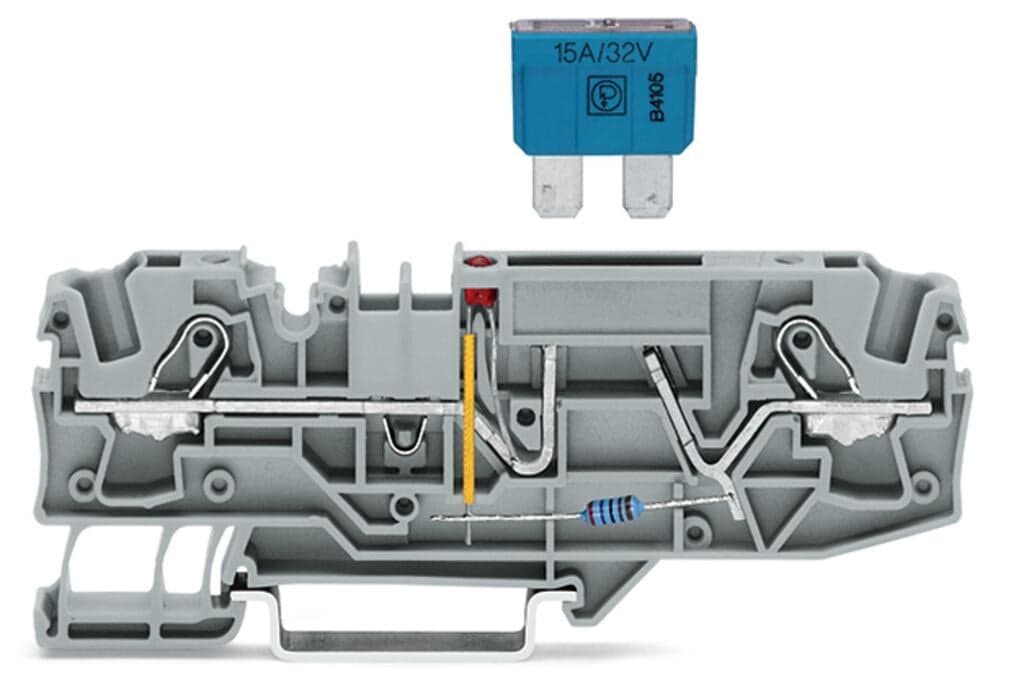

Fuse receptacle | pluggable | Fuse type | Standard flat plug-in fuse; 19.1 x 5.1 x 18.5 mm |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 6 mm2 |
Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Solid conductor; push-in termination | 2.5 … 10?mm2?/ 14 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
