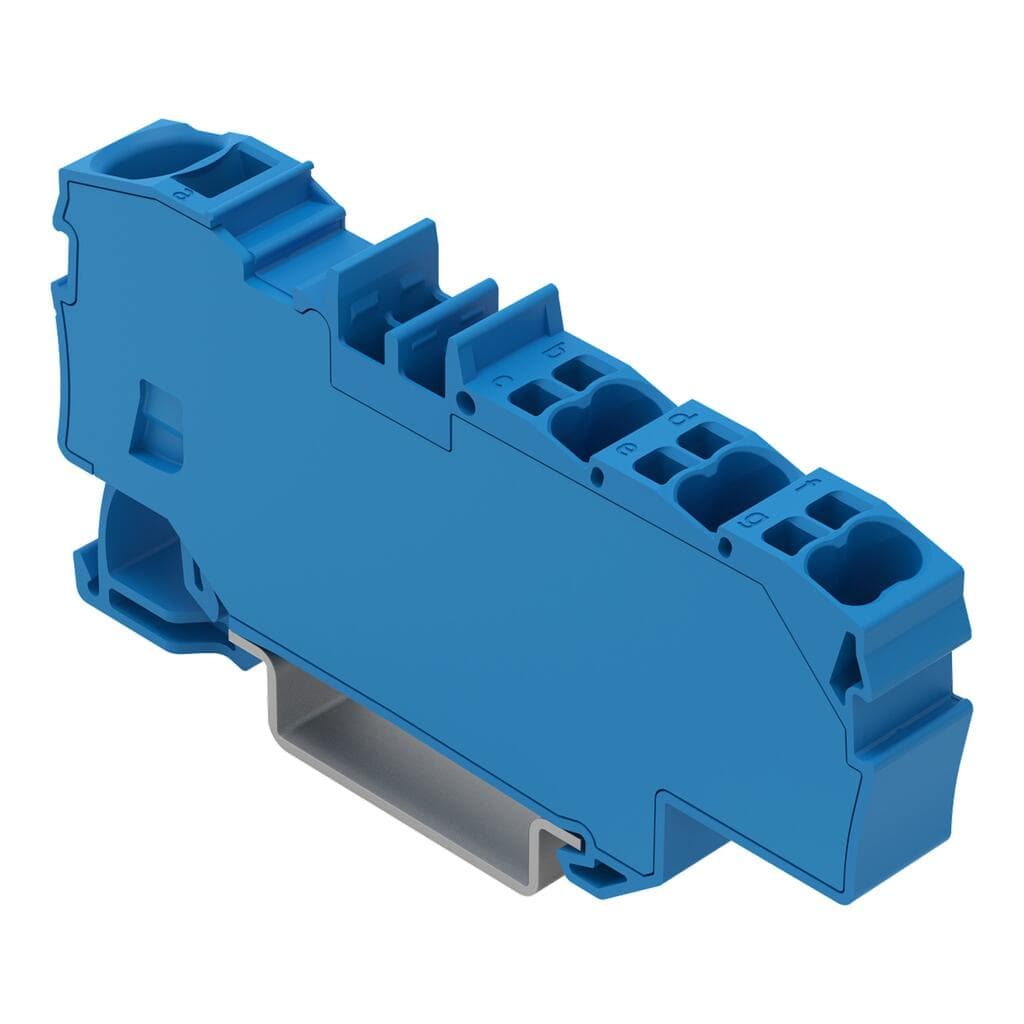

Product Model
2006-8034
Selling Points
- 1Efficient Connectivity Solutions: Designed for DIN-rail 35 x 15 and 35 x 7.5, ensuring seamless integration.
- 2Versatile Terminal Block: Supports 1 x 6 mm² and 6 x 1.5 mm² connections, catering to various application needs.
- 3Integrated End Plate: Enhances stability and organization, reducing clutter in your electrical setup.
- 4Push-in CAGE CLAMP Technology: Simplifies wire insertion with a secure and easy-to-use mechanism.
- 5Durable and Reliable: Built with high-quality materials for long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 7 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 9?mm?/ 0.354?inches | Height | 73.8?mm?/ 2.905?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Fire load | 0.32MJ |
Weight | 16.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 12?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966185775 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 41A |
Current at conductor cross-section (max.) mm2 | 57A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 1.311W | Rated current I<sub>N</sub> for specified power loss | 41A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection type 1 | Input |
Connection technology | Push-in CAGE CLAMP? | Total number of connection points | 1 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Solid conductor; push-in termination | 2.5 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Wiring direction | Front-entry wiring | Connection type 2 | Output |
Connection technology 2 | Push-in CAGE CLAMP? | Number of connection points 2 | 6 |
Nominal cross-section 2 | 1.5?mm2 | Solid conductor 2 | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Solid conductor; push-in termination 2 | 0.75 … 2.5?mm2?/ 18 … 14?AWG | Fine-stranded conductor 2 | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with insulated ferrule 2 | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Fine-stranded conductor; with ferrule; push-in termination; 2 | 0.75 … 1.5?mm2?/ 18 … 16?AWG |
Strip length 2 | 9 … 11?mm?/ 0.35 … 0.43?inches |
Specifications may be subject to change without notice
