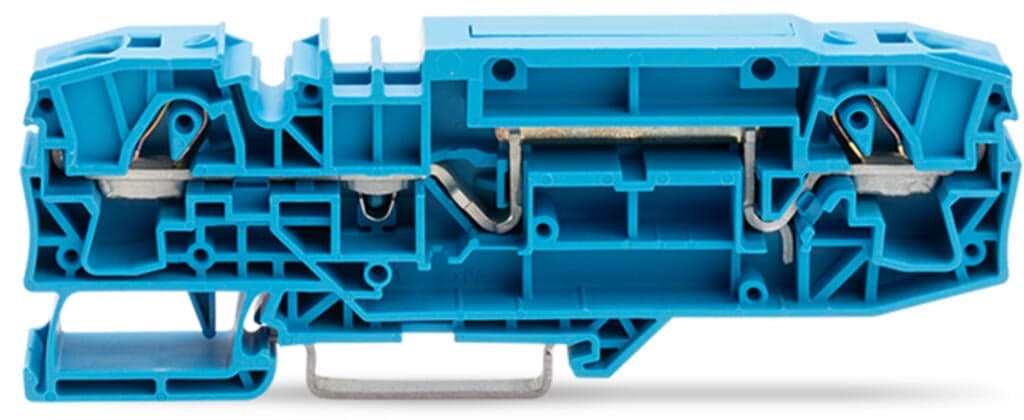

Product Model
2006-8604
Selling Points
- 1Connects two conductors with a single terminal block.
- 2Easy and secure connection using push-in technology.
- 3Compatible with DIN-rail 35 x 15 and 35 x 7.5 for versatile installation.
- 4Allows for clear identification of connections with side and center marking options.
- 5Durable blue color for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 15?mm?/ 0.591?inches | Height | 106.9?mm?/ 4.209?inches |
Depth from upper-edge of DIN-rail | 33?mm?/ 1.299?inches | Depth | 39 mm / 1.535 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.715MJ |
Weight | 31.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 12?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821372493 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 12kV |
Rated current | 30A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated voltage (III/3) 2 | 1500V | Rated surge voltage (III/3) 2 | 12kV |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 30A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 30A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 30A | Rated voltage CSA (Use Group C) | 1000V |
Rated current CSA (Use Group C) | 30A | Power loss, per pole (potential) | 0.702W |
Rated current I<sub>N</sub> for specified power loss | 30A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Voltage type 1 | AC/DC | Voltage type 2 | DC |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 6 mm2 |
Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Solid conductor; push-in termination | 2.5 … 10?mm2?/ 14 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
