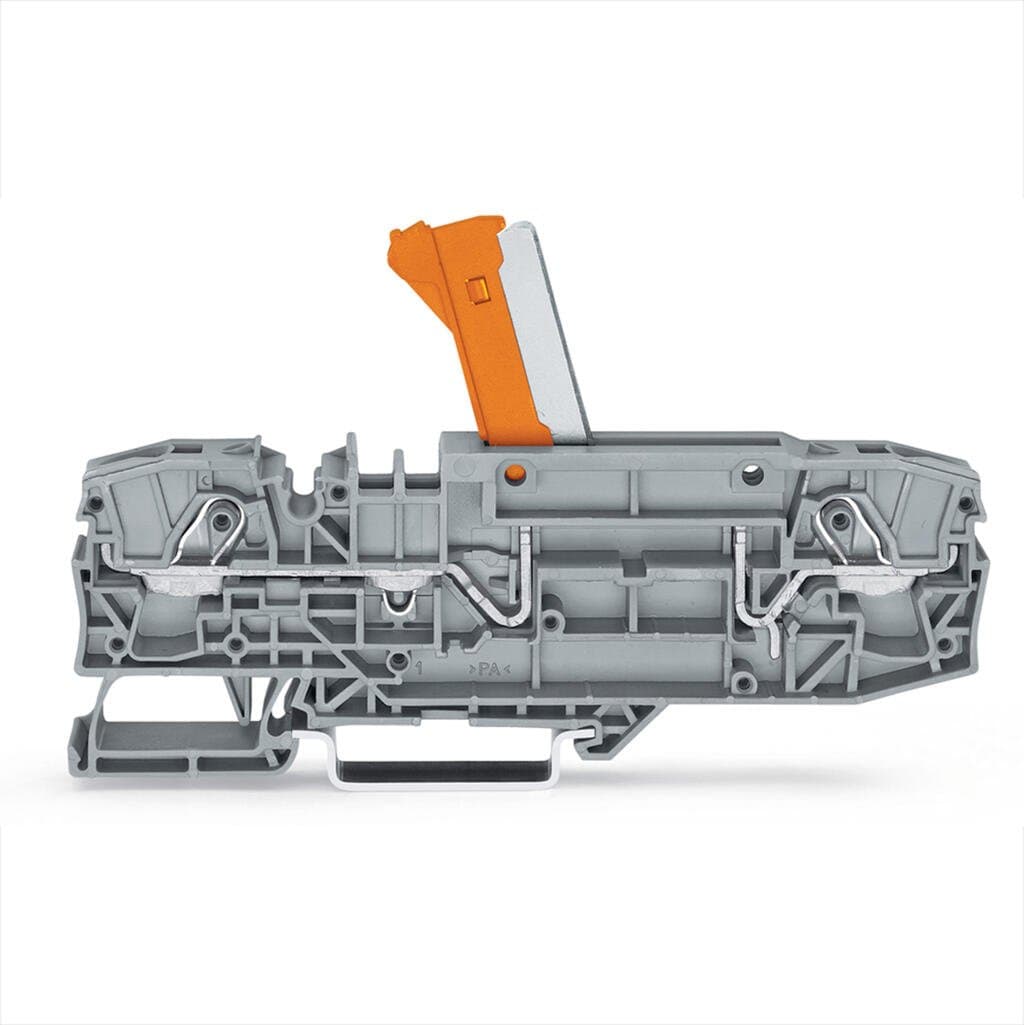

wago 2006-8671

Selling Points

  • 1Secure and efficient conductor connections with minimal effort.
  • 2Handles high currents with reliability and precision.
  • 3Versatile mounting options for DIN-35 rails (35 x 15 or 35 x 7.5mm).
  • 4Rated for 1000V AC/DC and 12kV impulse voltage, ensuring safety.
  • 5Simple push-in termination for solid and fine-stranded conductors (0.5-10mm² or #20-#8AWG).
Product Details
2006-8671
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
2
Total number of potentials
1
Number of levels
1
Number of jumper slots
2
Width
15?mm?/ 0.591?inches
Height
106.9?mm?/ 4.209?inches
Depth from upper-edge of DIN-rail
33?mm?/ 1.299?inches
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.716MJ
Weight
31.4g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
Product Group
22 (TOPJOB S)
eCl@ss 10.0
27-14-11-26
eCl@ss 9.0
27-14-11-26
ETIM 9.0
EC000902
ETIM 8.0
EC000902
ECCN
NO US CLASSIFICATION
PU (SPU)
12?pcs
Packaging type
box
Country of origin
DE
GTIN
4050821372509
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Rated voltage (III / 3)
1000V
Rated impulse voltage (III / 3)
12kV
Rated current
30A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Rated voltage (III/3) 2
1500V
Rated surge voltage (III/3) 2
12kV
Approvals per
CSA 22.2 No 158
Rated voltage UL (Use Group B)
600V
Rated current UL (Use Group B)
30A
Rated voltage UL (Use Group C)
600V
Rated current UL (Use Group C)
30A
Rated voltage CSA (Use Group B)
600V
Rated current CSA (Use Group B)
30A
Rated voltage CSA (Use Group C)
1000V
Rated current CSA (Use Group C)
30A
Power loss, per pole (potential)
0.702W
Rated current I<sub>N</sub> for specified power loss
30A
Resistance value for specified, current-dependent power loss
0.001Ω
Voltage type 1
AC/DC
Voltage type 2
DC
Connection technology
Push-in CAGE CLAMP?
Actuation type
Operating tool
Connectable conductor materials
Copper
Nominal cross-section
6 mm2
Solid conductor
0.5 … 10?mm2?/ 20 … 8?AWG
Solid conductor; push-in termination
2.5 … 10?mm2?/ 14 … 8?AWG
Fine-stranded conductor
0.5 … 10?mm2?/ 20 … 8?AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 6?mm2?/ 20 … 10?AWG
Fine-stranded conductor; with ferrule; push-in termination
2.5 … 6?mm2?/ 16 … 10?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
13 … 15?mm?/ 0.51 … 0.59?inches
Wiring direction
Front-entry wiring
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests
DIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Installation location
Service life test, Category?1, Class?A/B
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Frequency
f1= 5 Hz to f2= 150 Hz
Acceleration
5g (highest test level used for all axes)
Test duration per axis
5 h
Test directions
X, Y and Z axes
Monitoring for contact faults/interruptions
Passed
Voltage drop measurement before and after each axis
Passed
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Shock test
Test passed according to Section 10 of the standard
Shock form
Half sine
Shock duration
30 ms
Number of shocks per axis
3 pos. und 3 neg.
Vibration and shock stress for rolling stock equipment
Passed

Specifications may be subject to change without notice
