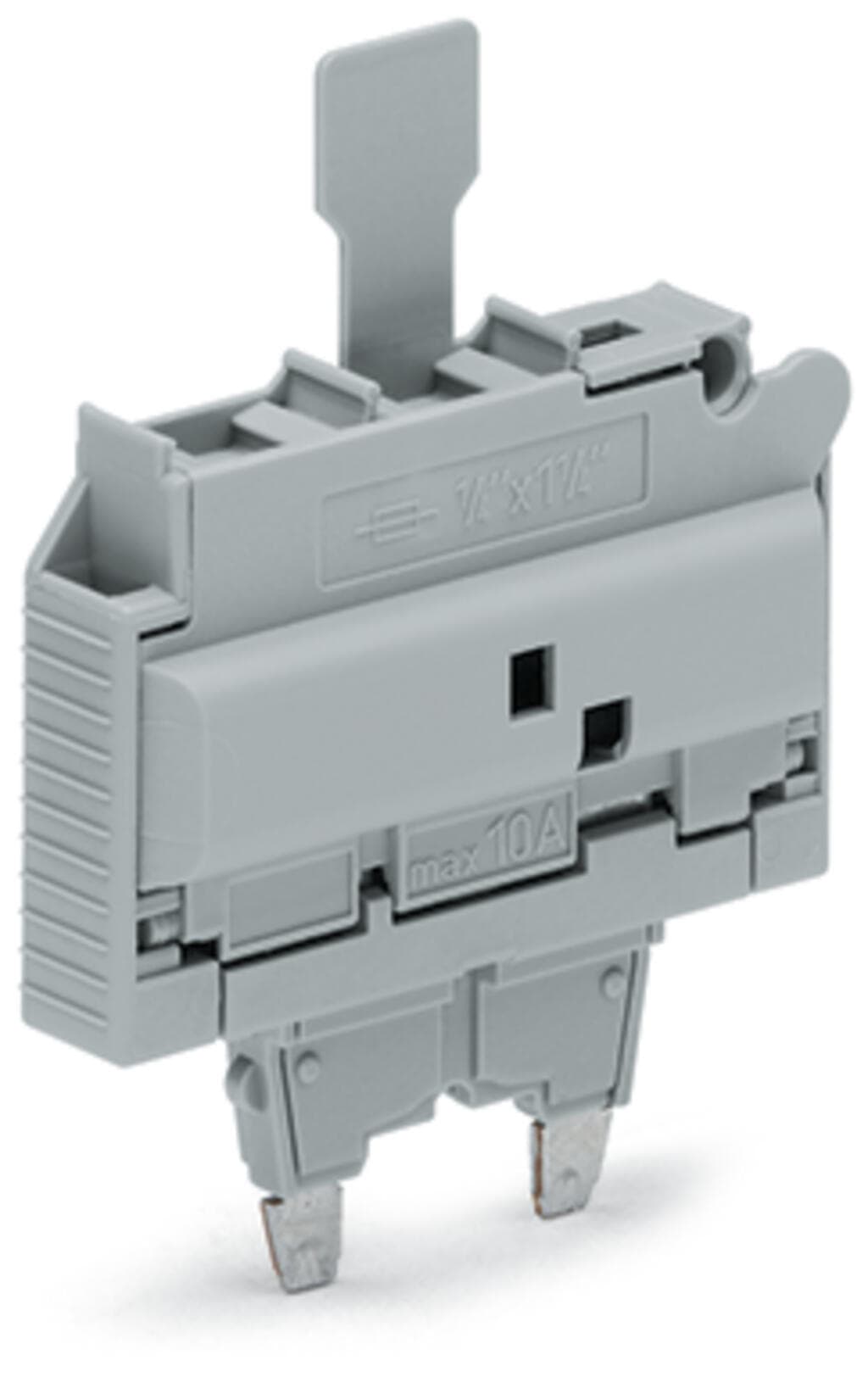

Product Model
2006-931/1099-542
Selling Points
- 110.4 mm wide, gray color.
- 2Pull-tab for easy fuse replacement.
- 3LED indicator for blown fuse indication.
- 4Operates at 30-65Vdc.
- 5RoHS compliant, UL 1059 and CSA C22.2 No. 158 certified.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10.4?mm?/ 0.409?inches | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.11MJ |
Weight | 6.9g | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-49 |
eCl@ss 9.0 | 27-14-11-49 | ETIM 9.0 | EC002018 |
ETIM 8.0 | EC002018 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454821111 |
Customs tariff number | 8536694040 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 325eb6a4-b523-4452-b72d-61943865c596 |
SCIP notification number (Belgium) | f0323b13-b2b0-4f06-8030-22551b3dde14 | SCIP notification number (Bulgaria) | 868026b5-215a-49c6-9e89-6b55e1461846 |
SCIP notification number (Czech Republic) | 86978863-cb6b-4736-b55d-261b3972202f | SCIP notification number (Denmark) | 44cd62a4-07fa-4e1a-99ea-ca0d68d74b79 |
SCIP notification number (Finland) | 4f89382b-56a4-456e-8fdd-7646b58295e8 | SCIP notification number (France) | 5bce56e7-b61f-4ef6-9b77-62dcfbbc1109 |
SCIP notification number (Germany) | 62084e3e-92a4-4f6a-b398-c409ce8d5a4e | SCIP notification number (Hungary) | 80311862-aeee-4807-8968-5378fceff0cc |
SCIP notification number (Italy) | 0329c082-084f-45df-95bd-857c859e385e | SCIP notification number (Netherlands) | 78876567-dd50-4adf-987d-ea7e2bf1caf7 |
SCIP notification number (Poland) | 805be2b9-da5a-4286-938a-a2d10cf421ee | SCIP notification number (Romania) | 69f3816d-3fd1-4d88-8028-28832b47e5c8 |
SCIP notification number (Sweden) | 5382306d-d726-4a5d-ba9e-89443b839c53 | Rated voltage (III / 3) | 800V |
Rated current | 10A | Operation status indicator | 30 … 65?V |
Blown fuse indication | with indicator lamp | Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
Rated current (note) | Leakage current in case of a blown fuse: LED 2 mA | Ratings per 2 | IEC/EN 60947-7-3 |
Rated voltage (III/3) 2 | 65V | Rated surge voltage (III/3) 2 | 1.5kV |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 65V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group C) | 65V |
Rated current UL (Use Group C) | 15A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 15A | Power loss (max.) P<sub>l (max.)</sub> (note) | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN?60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. |
Fuse type | Cylindrical fuse; ?" x 1?" | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
