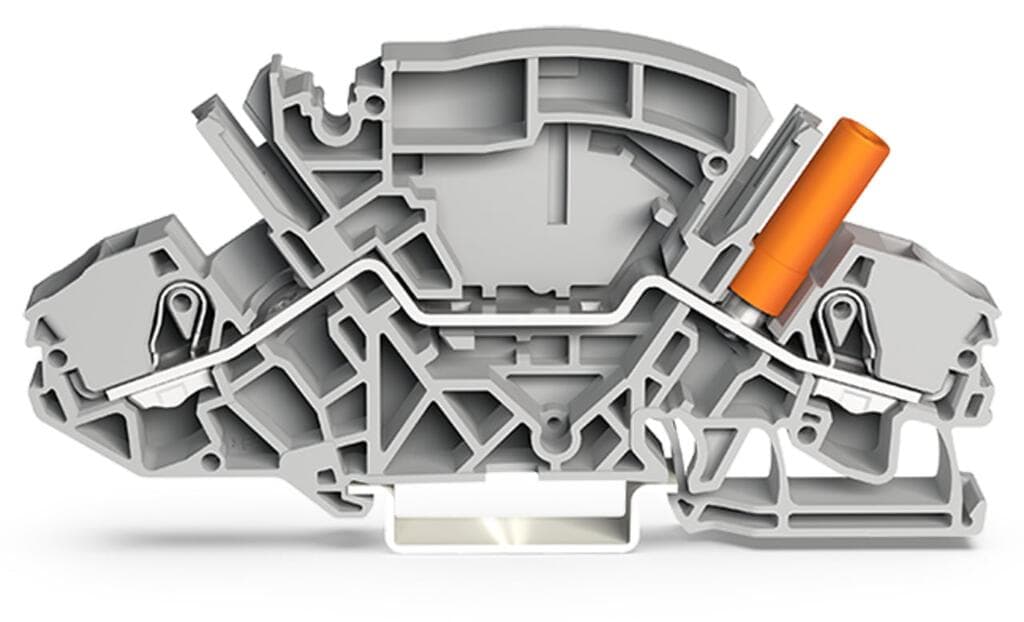

Product Model
2007-8801
Selling Points
- 1Durable Construction: Built with high-quality materials for long-lasting performance.
- 2Touch-Proof Test Socket: Ensures safe and reliable testing with 4 mm test plugs.
- 3DIN-Rail Compatibility: Designed for easy installation on DIN-rail 35 x 15 and 35 x 7.5.
- 4Push-In CAGE CLAMP: Fast and vibration-proof connection technology.
- 5Side and Center Marking: Easy identification of connections with side and center marking slots.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 8?mm?/ 0.315?inches | Height | 99.6?mm?/ 3.921?inches |
Depth from upper-edge of DIN-rail | 46.8?mm?/ 1.843?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.387MJ | Weight | 22g |
Test socket color | orange | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4055143074742 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 601a98d7-272a-40d1-9338-800f44e0abc9 | SCIP notification number (Belgium) | f8119565-f9e5-4f9d-9cea-850ba19284de |
SCIP notification number (Bulgaria) | dcde2ab7-04dc-43eb-8417-dc5425d5123d | SCIP notification number (Czech Republic) | e55dcafe-462c-4c5b-9848-bc85925eeb42 |
SCIP notification number (Denmark) | 00e45482-2ac2-47f1-950b-6445fb05b635 | SCIP notification number (Finland) | e957bc14-a6bc-437b-ace4-eac57f6c2151 |
SCIP notification number (France) | adc6786b-3e44-4ce0-81e6-1a6d0340cecd | SCIP notification number (Germany) | 6c1d2d34-984a-49da-bd2c-d2b8c90c4a19 |
SCIP notification number (Hungary) | c14f593c-c2d1-4922-8d85-9de53ae2e96c | SCIP notification number (Italy) | c091b7c5-9ad0-4d18-918d-3f70b5907b72 |
SCIP notification number (Netherlands) | 97c90059-066a-415b-9049-08161410a54d | SCIP notification number (Poland) | a499b168-8afa-4b08-984c-52a35280df7f |
SCIP notification number (Romania) | 750784a7-8b51-4baa-b131-43ccc7c5c2e1 | SCIP notification number (Sweden) | 680a5641-2df1-4d84-8296-9bbef87435ec |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 30A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 30A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 30A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 30A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 30A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Power loss, per pole (potential) | 0.702W | Rated current I<sub>N</sub> for specified power loss | 30A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 / 10 AWG | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Solid conductor; push-in termination | 1 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with uninsulated ferrule | 1.5 … 6?mm2?/ 16 … 10?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
