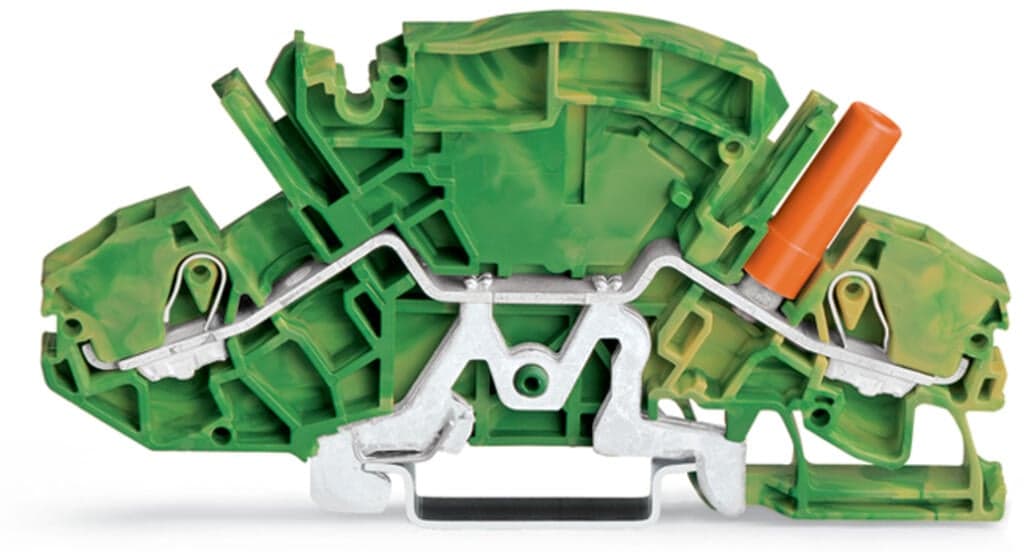

Product Model
2007-8807
Selling Points
- 1Versatile Connection Options: Supports 0.5mm² to 10mm² fine stranded or solid conductors and #20AWG to #8AWG fine stranded or solid conductors.
- 2Durable Construction: Made from Polyamide (PA) 66, ensuring high reliability and durability in industrial environments.
- 3Easy Installation: Features push-in CAGE CLAMP spring connections for quick and secure terminal block installation.
- 4Safety Features: Includes a touch-proof test socket for safe testing and a green-yellow color indicating its function as a grounding terminal.
- 5Compliant with Standards: Meets international standards including EN 60947, C22.2 No. 158, and UL 1059 for added assurance in industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 8?mm?/ 0.315?inches | Height | 99.6?mm?/ 3.921?inches |
Depth from upper-edge of DIN-rail | 46.8?mm?/ 1.843?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.359MJ | Weight | 30g |
Test socket color | orange | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4055143074773 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 03d68a7a-d7ef-4f83-94d6-4d1418a1453d | SCIP notification number (Belgium) | 6498ce9a-796f-47ad-8e6c-9438503d73d0 |
SCIP notification number (Bulgaria) | 035ee86e-5d02-4d7e-9552-a40048c743c8 | SCIP notification number (Czech Republic) | 55e428d3-73ca-4e19-91eb-74a788ee92a4 |
SCIP notification number (Denmark) | c1ea4c29-e7cd-4fc1-a86b-ebe51e77a5b4 | SCIP notification number (Finland) | a7e1278e-988c-40f9-bd7f-0c1d8c25f14d |
SCIP notification number (France) | 86321ce1-49fa-4162-92e3-c16a12ac4655 | SCIP notification number (Germany) | 5f3ccb16-e664-4434-87fc-184a307d6770 |
SCIP notification number (Hungary) | 3d90613d-2627-4c31-8a62-3caabc4471bb | SCIP notification number (Italy) | 3a91f187-4f5c-48f8-8694-cfbc9bc59fe2 |
SCIP notification number (Netherlands) | f03fd20f-37ec-4965-ac7e-d929719b057e | SCIP notification number (Poland) | fdb9fc88-cd8f-4177-82aa-77eec7c1d521 |
SCIP notification number (Romania) | 1f5e193f-a255-4cd7-a992-efc1b879d049 | SCIP notification number (Sweden) | e5be42f6-ecd3-4cbf-a4e8-5a509ca3a74a |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 6 mm2 / 10 AWG |
Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Solid conductor; push-in termination | 1 … 10?mm2?/ 14 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG |
Fine-stranded conductor; with uninsulated ferrule | 1.5 … 6?mm2?/ 16 … 10?AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG |
Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
