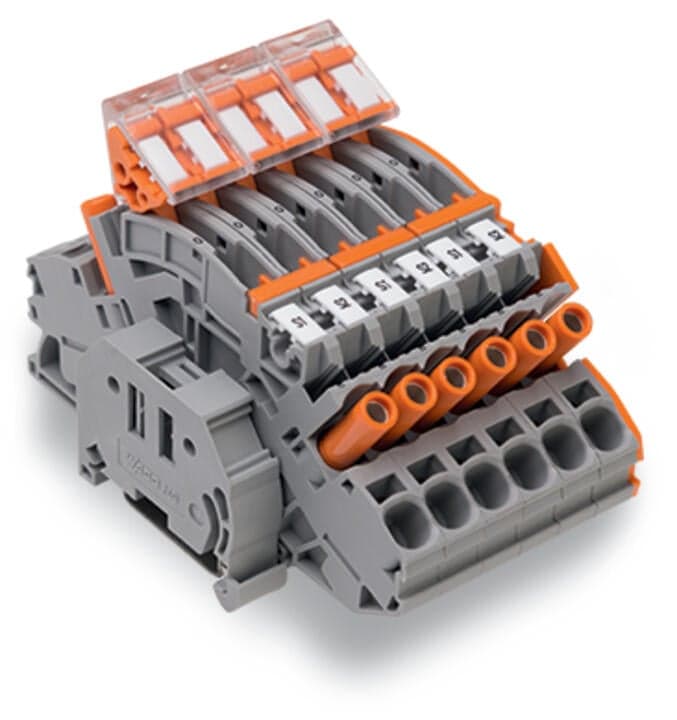

Product Model
2007-8875
Selling Points
- 1Compact design for easy installation and space-saving.
- 2Supports wire sizes from 0.5mm² to 10mm² or #20AWG to #8AWG.
- 3Push-in CAGE CLAMP spring connections ensure secure and reliable connections.
- 4Suitable for DIN-35 rail mounting with a width of 69.5mm.
- 5Meets overvoltage category III/3 and pollution degree 3 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of levels | 1 | Width | 69.5?mm?/ 2.736?inches |
Height | 99.6?mm?/ 3.921?inches | Depth from upper-edge of DIN-rail | 65.3?mm?/ 2.571?inches |
Module width | 8?mm?/ 0.315?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | multi-colored | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 3.243MJ | Weight | 196.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-47 | eCl@ss 9.0 | 27-14-11-47 |
ETIM 9.0 | EC000276 | ETIM 8.0 | EC000276 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143240628 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 07053267-9cc9-4e80-906b-02d5be984777 | SCIP notification number (Belgium) | 685df096-f420-40b6-9f02-22ca2e2f68c5 |
SCIP notification number (Bulgaria) | 937ea640-7cef-460c-b21b-fe49b424eed0 | SCIP notification number (Czech Republic) | 51ac0922-116a-4d07-bbaf-b9e41c419a7f |
SCIP notification number (Denmark) | 4868a345-19b9-4cff-8eb6-7c0e558555e5 | SCIP notification number (Finland) | abeb4353-af96-495f-90a7-c01747e86a10 |
SCIP notification number (France) | d9d45c9a-5682-4945-8c60-2d2312480da6 | SCIP notification number (Germany) | a69750ee-6d53-4f74-a9b8-1c5cd9fd36fb |
SCIP notification number (Hungary) | 2e0a58d0-c93f-4fb6-a60f-5e068332a48b | SCIP notification number (Italy) | 0c6a4315-bbcb-4f7e-b1e5-1ec21488e052 |
SCIP notification number (Netherlands) | 925aee0d-4f2e-498a-a3b2-d58c3de04c17 | SCIP notification number (Poland) | c6f8d7e2-7ed2-4f73-a3e0-3c6f309da27f |
SCIP notification number (Romania) | 19b7acdb-4cd4-4076-83fe-43da3ecdc81c | SCIP notification number (Sweden) | e5a18b15-4ef9-4f40-824e-ec7c83fee2e2 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 / 10 AWG | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Solid conductor; push-in termination | 1 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with uninsulated ferrule | 1.5 … 6?mm2?/ 16 … 10?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
