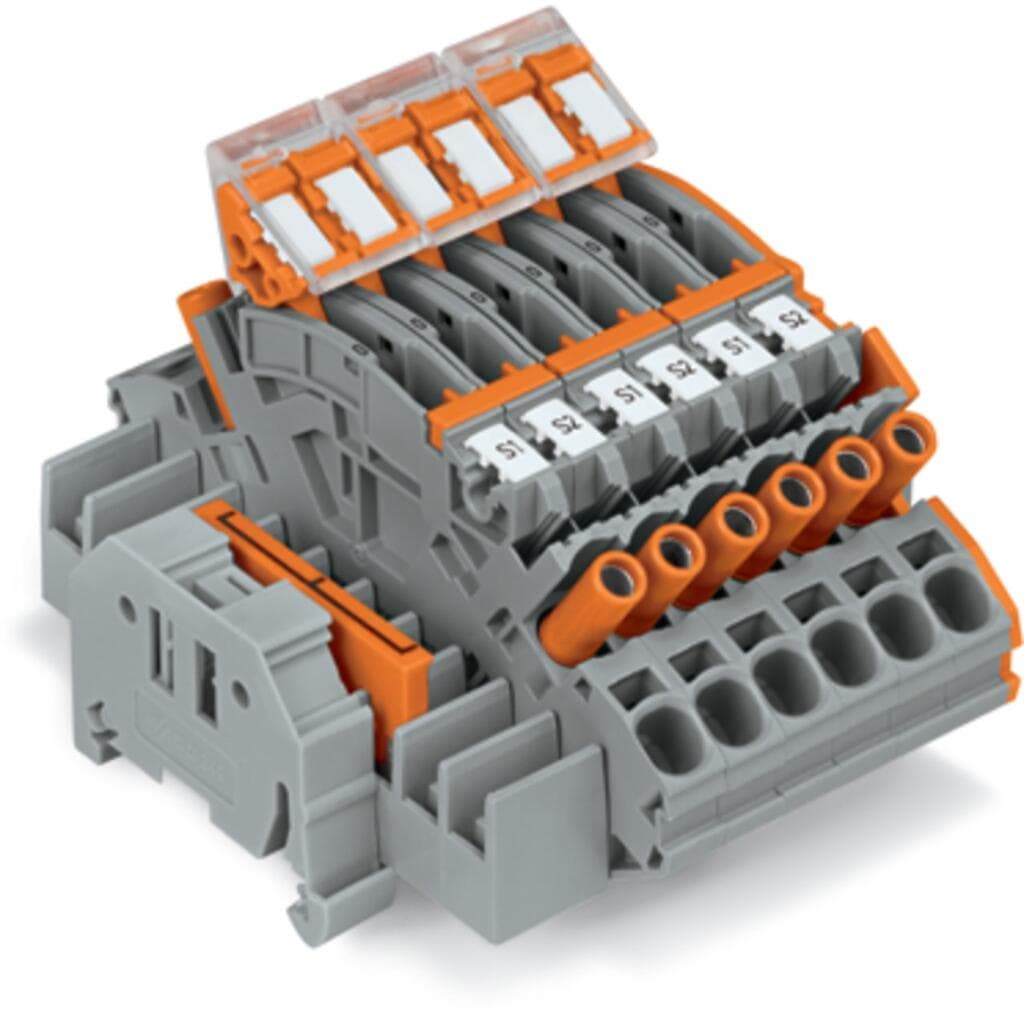

Product Model
2007-8876
Selling Points
- 1Push-in CAGE CLAMP connections for secure and easy wiring.
- 2DIN-35 rail mounting for versatile and space-efficient installation.
- 3Nominal cross-section of 6mm² accommodating wire sizes from 0.5mm² to 10mm².
- 4Multicoloured design for easy identification in complex electrical systems.
- 5Rohs compliant ensuring high-quality and safety standards in electrical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of levels | 1 | Width | 85 mm / 3.346 inches |
Height | 99.6 mm / 3.921 inches | Depth from upper-edge of DIN-rail | 65.3 mm / 2.571 inches |
Module width | 8 mm / 0.315 inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | multi-colored | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 3.527MJ | Weight | 205g |
Processing temperature | -35 … +85 °C | Continuous operating temperature | -60 … +105 °C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-47 |
eCl@ss 9.0 | 27-14-11-47 | ETIM 9.0 | EC000276 |
ETIM 8.0 | EC000276 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4050821771678 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | c2cf3322-fccd-4201-97bf-bd1dbc91a9d4 |
SCIP notification number (Belgium) | df0d5c51-1e75-4403-b4dd-ba33ad0d4c9b | SCIP notification number (Bulgaria) | a1ea7400-9546-43b0-9cb2-fdaca499c841 |
SCIP notification number (Czech Republic) | 32530725-558c-472b-9a14-013c936d81b2 | SCIP notification number (Denmark) | 1317d9e5-ddd0-4f1d-b910-87615d9cc789 |
SCIP notification number (Finland) | a44cc3df-0bc6-414a-9788-6ce0fcb3e35f | SCIP notification number (France) | 53c43239-dd10-405b-bd3a-7c679b5f1783 |
SCIP notification number (Germany) | a679ffd2-9453-4083-aa8a-8b22ceb19783 | SCIP notification number (Hungary) | 8a92e63e-9472-43e2-be7c-b6e554d7d8c2 |
SCIP notification number (Italy) | f8904cdc-0e77-4df1-947f-2d6225819a30 | SCIP notification number (Netherlands) | e20ec976-31ac-4d97-ae16-fff9399fe5b9 |
SCIP notification number (Poland) | fe79e07f-2582-43af-953c-47ac20bee156 | SCIP notification number (Romania) | ee0d896a-e526-4bb2-80d7-1917cda6f67b |
SCIP notification number (Sweden) | 621f2e21-65df-4005-a33f-edee6570de9e | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 6 mm2 / 10 AWG |
Solid conductor | 0.5 … 10 mm2 / 20 … 8 AWG | Solid conductor; push-in termination | 1 … 10 mm2 / 14 … 8 AWG |
Fine-stranded conductor | 0.5 … 10 mm2 / 20 … 8 AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm2 / 20 … 10 AWG |
Fine-stranded conductor; with uninsulated ferrule | 1.5 … 6 mm2 / 16 … 10 AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6 mm2 / 16 … 10 AWG |
Strip length | 13 … 15 mm / 0.51 … 0.59 inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
