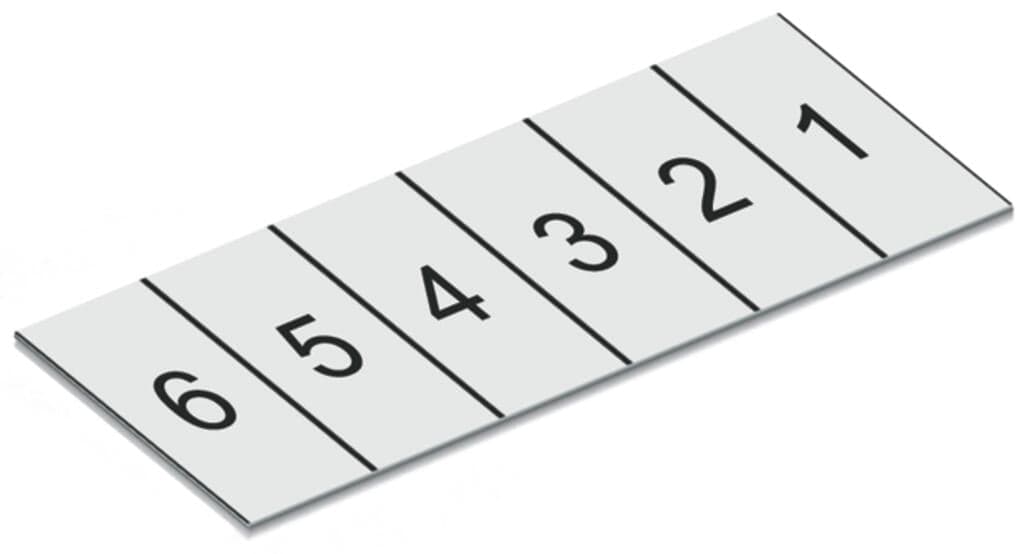

Product Model
2009-110/762-859
Selling Points
- 1Cut to a defined length for precise marking.
- 2Marked for clear identification.
- 3Not stretchable for consistent performance.
- 4Snap-on type for easy installation.
- 5White color for high visibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Marking method | Thermal transfer | Marking | 9 … 1 |
Marking direction | Horizontal marking | Marking color | black |
Marking type | Numbers | Delivery form | strip |
Strip width | 11mm | Smear resistance | EN 60998-1:2004 |
Color | white | UV resistance | EN 60068-2-5:2010 Procedure B |
Halogen-free | Yes | Weight | 0.2g |
Fire load | 0.005MJ | eCl@ss 10.0 | 27-14-11-37 |
eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | bag |
Country of origin | LU | GTIN | 4055143407618 |
Customs tariff number | 3920620090 | RoHS Compliance Status | Compliant,No Exemption |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
