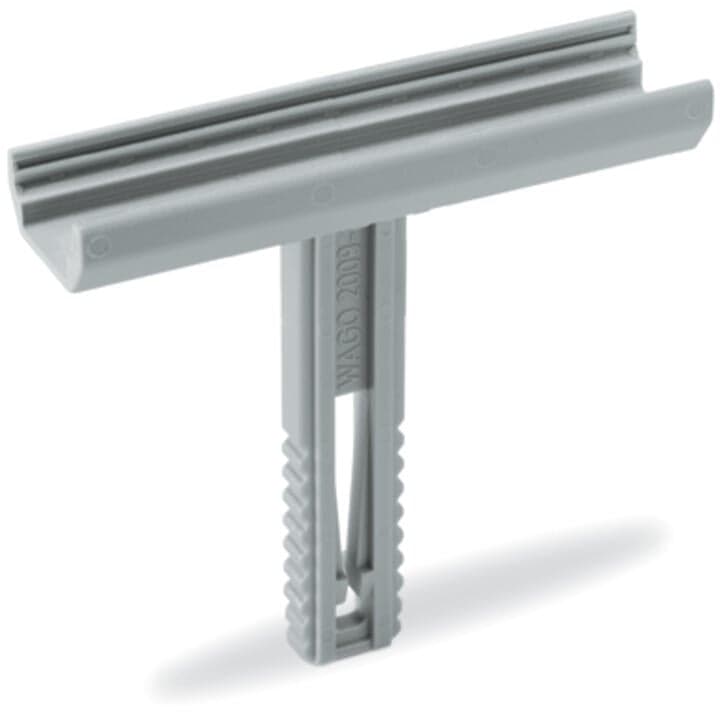

Product Model
2009-163
Selling Points
- 1Snap into jumper slots for easy installation.
- 2Customize the height to fit different marking needs.
- 3Suitable for all control cabinet marking tasks.
- 4Compatible with WAGO marking accessories and software.
- 5Built to last with robust materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | for end stops (249?116 and 249?117); for 9 WMB markers or 1 TOPJOB? S marking strip | Properties | Snap-on type and adjustable in height from 45 mm to 61 mm |
Height | 45?mm?/ 1.772?inches | Width | 12.2?mm?/ 0.48?inches |
Depth | 46.2?mm?/ 1.819?inches | Color | gray |
Weight | 2g | Fire load | 0.061MJ |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-40-75 |
eCl@ss 9.0 | 27-14-40-75 | ETIM 9.0 | EC002248 |
ETIM 8.0 | EC002248 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821388937 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
