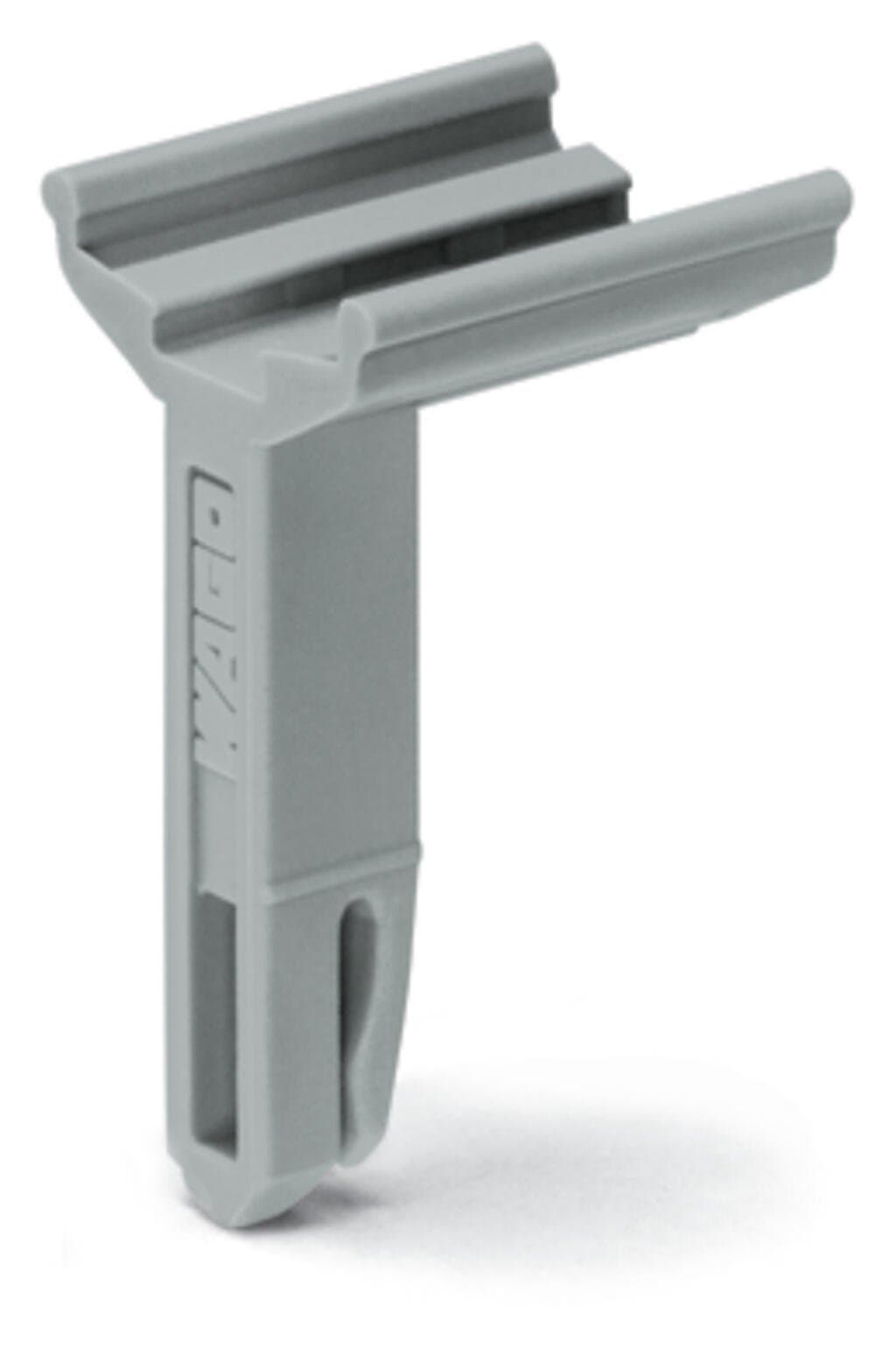

Product Model
2009-193
Selling Points
- 1Compact design with dimensions 0.591 in W.
- 2Suitable for use with WMB marker strips.
- 30.026 MJ fire load for safety.
- 4Snap-on type for jumper slot.
- 5RoHS compliant for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | snaps into jumper slot; for WMB markers or marking strips | Width | 15?mm?/ 0.591?inches |
Color | gray | Weight | 0.6g |
Fire load | 0.019MJ | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-40-75 | eCl@ss 9.0 | 27-14-40-75 |
ETIM 9.0 | EC002248 | ETIM 8.0 | EC002248 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918935982 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
