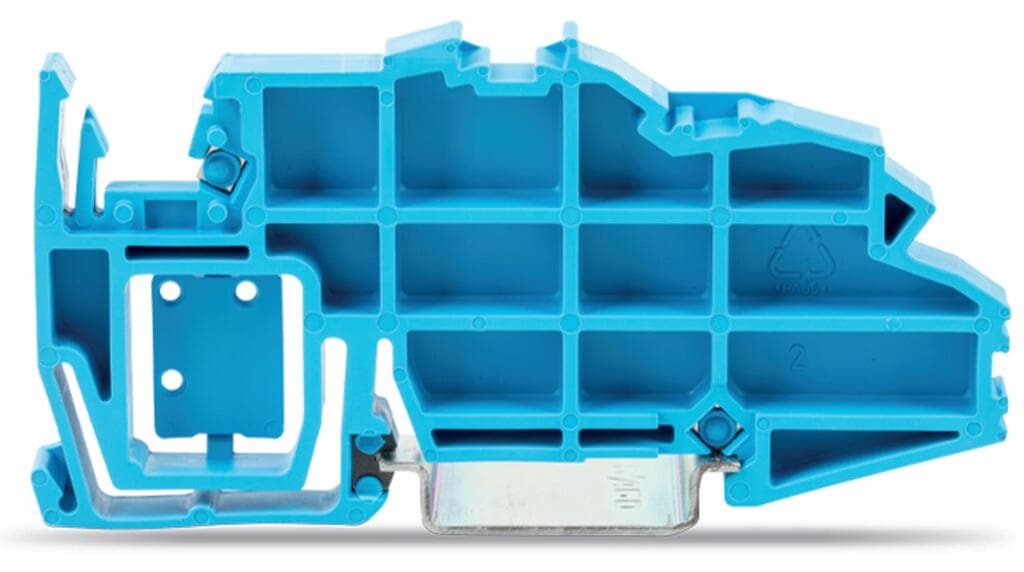

Product Model
2009-305
Selling Points
- 1End Stop Function: Prevents busbars from extending beyond the carrier.
- 2Detachable Separator Plate: Easily removable for maintenance or reconfiguration.
- 3DIN 35 Rail Compatibility: Designed for use with DIN 35 rail systems.
- 47.5 mm Thickness: Provides robust support for busbars.
- 5ROHS Compliant: Meets environmental safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 7.5?mm?/ 0.295?inches | Height | 96?mm?/ 3.78?inches |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.396MJ | Weight | 13.3g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-06-07 |
eCl@ss 9.0 | 27-40-06-07 | ETIM 9.0 | EC001166 |
ETIM 8.0 | EC001166 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4044918970020 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
