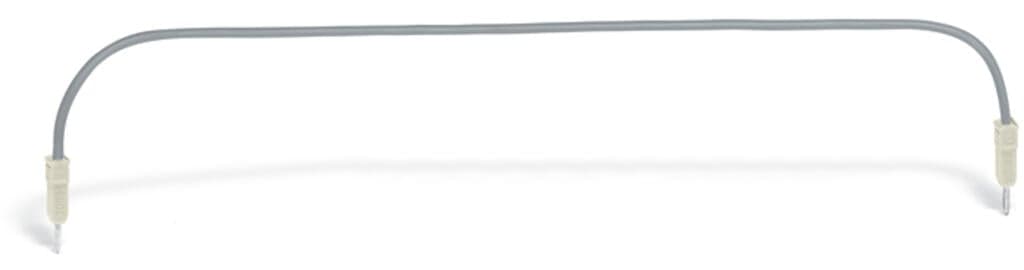

Product Model
2009-406
Selling Points
- 1Insulated for added safety and durability.
- 2Push-in connection technology for easy conductor insertion.
- 3Suitable for 2000 and 2020 series rail-mounted terminal blocks.
- 4Gray color for easy identification in industrial settings.
- 5250 mm length provides ample flexibility in wiring applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Push down the wire jumper until fully inserted! | Wire length of wire jumpers | 250mm |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.041MJ | Weight | 3.7g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(10)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821458906 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 9A | Solid conductor | 0.75?mm2 |
Specifications may be subject to change without notice
