Product Model
2010-7111
Selling Points

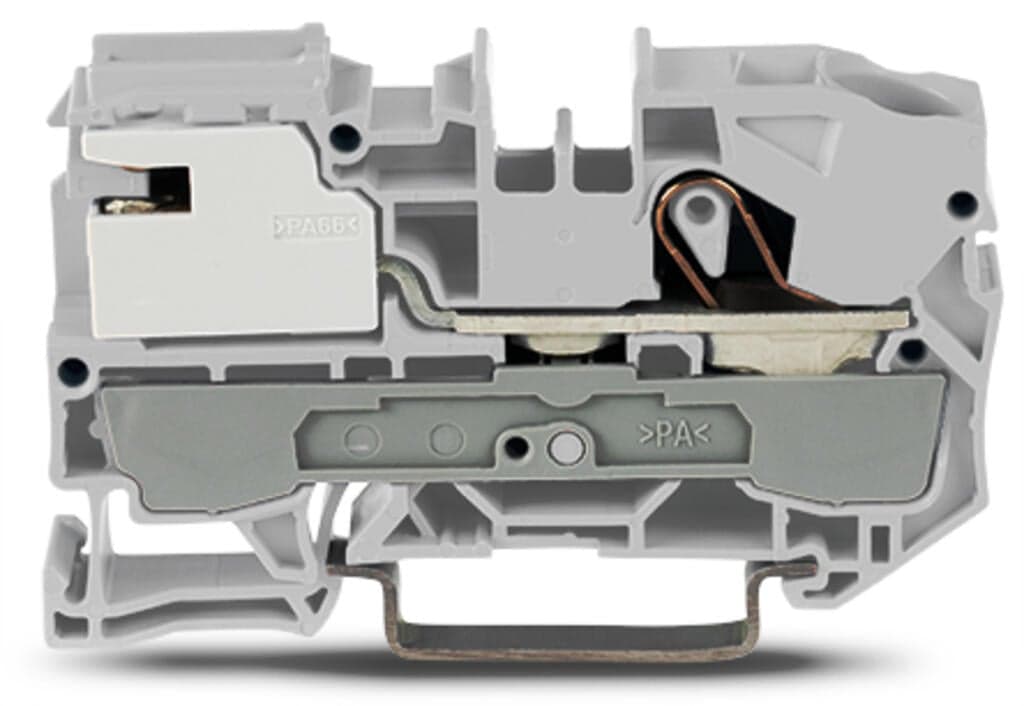

- 1Secure Power Distribution: The WAGO 2010-7111 terminal block ensures reliable power distribution with its push-in CAGE CLAMP connection.
- 2Versatile Wire Compatibility: Suitable for wire sizes ranging from 0.5mm² to 16mm², including #20AWG to #6AWG.
- 3High Current Rating: Rated for 57A at 250V, making it ideal for high-current applications.
- 4DIN-Rail Mounting: Designed for easy mounting on DIN-35 rails, enhancing flexibility in industrial automation setups.
- 5Gray Color with Polyamide 66 Insulation: The terminal block features a gray color with polyamide 66 insulation for durability and fire resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 10?mm?/ 0.394?inches | Height | 67.3?mm?/ 2.65?inches |
Depth from upper-edge of DIN-rail | 38.1?mm?/ 1.5?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.359MJ | Weight | 21.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC001257 | ETIM 8.0 | EC001257 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143879774 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 57A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 1.819W | Rated current I<sub>N</sub> for specified power loss | 57A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Nominal cross-section | 10 mm2 |
Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG | Solid conductor; push-in termination | 4 … 16?mm2?/ 14 … 6?AWG |
Fine-stranded conductor | 0.5 … 16?mm2?/ 20 … 6?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 4 … 10?mm2?/ 12 … 8?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. |
Strip length | 17 … 19?mm?/ 0.67 … 0.75?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
