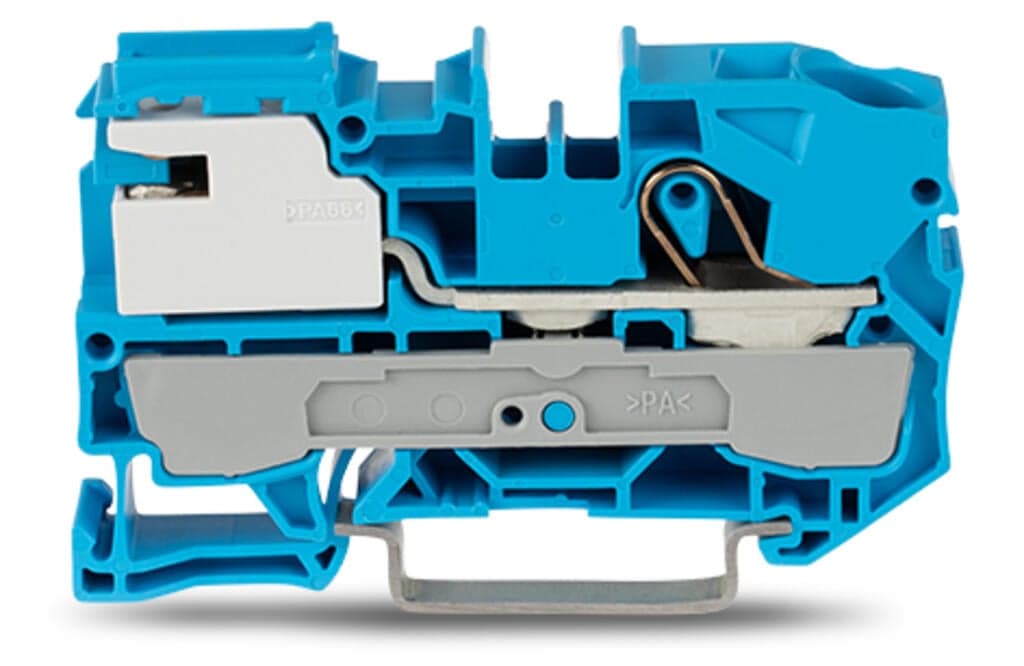

Product Model
2010-7114
Selling Points
- 1High nominal current of 57A for efficient power transmission.
- 2Designed for Ex e II applications, ensuring safety in hazardous environments.
- 3Durable gray color for long-lasting performance and easy identification.
- 4High-quality and reliable solution for all your electrical connection needs.
- 5Suitable for a wide range of industrial applications, including automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 10?mm?/ 0.394?inches | Height | 67.3?mm?/ 2.65?inches |
Depth from upper-edge of DIN-rail | 38.1?mm?/ 1.5?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.359MJ | Weight | 21.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC001257 | ETIM 8.0 | EC001257 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143879699 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 57A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 1.819W | Rated current I<sub>N</sub> for specified power loss | 57A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 10 mm2 | Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG |
Solid conductor; push-in termination | 4 … 16?mm2?/ 14 … 6?AWG | Fine-stranded conductor | 0.5 … 16?mm2?/ 20 … 6?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with ferrule; push-in termination | 4 … 10?mm2?/ 12 … 8?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. | Strip length | 17 … 19?mm?/ 0.67 … 0.75?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
