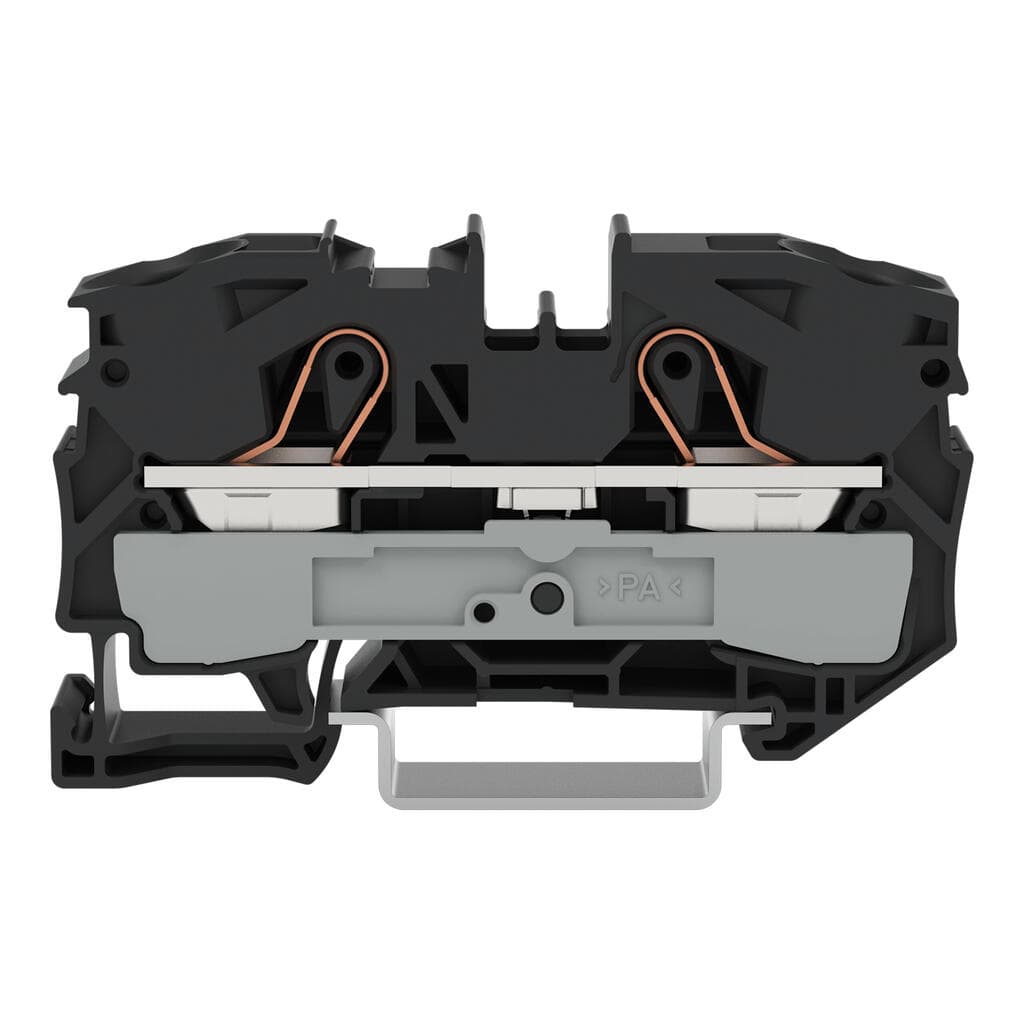

Product Model
2016-1205
Selling Points
- 1Suitable for Ex e II Applications: Ensures safe operation in hazardous environments.
- 216 mm² Capacity: Handles high current requirements with ease.
- 3Side and Center Marking: Easy identification of connections.
- 4DIN-Rail Compatibility: Mounts seamlessly on 35 x 15 and 35 x 7.5 DIN rails.
- 5Push-in CAGE CLAMP: Quick and secure terminal connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 12?mm?/ 0.472?inches | Height | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 36.9?mm?/ 1.453?inches | Depth | 43.5 mm / 1.713 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.447MJ |
Weight | 22.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966311594 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | ATEX: PTB 05 ATEX 1031 U / IECEx: PTB 05.0015U (Ex eb IIC Gb) | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 76A |
Current at conductor cross-section (max.) mm2 | 90A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated current (note) | 15 mm high DIN-35 rails shall be used for a current load higher than 76 A! | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 85A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 85A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 80A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 80A |
Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Rated current (Ex e II) | 70A | Rated current (Ex e II) with jumper | 67A |
Power loss, per pole (potential) | 2.426W | Rated current I<sub>N</sub> for specified power loss | 76A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 16 mm2 | Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG |
Solid conductor; push-in termination | 6 … 16?mm2?/ 14 … 6?AWG | Fine-stranded conductor | 0.5 … 25?mm2?/ 20 … 4?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 16?mm2?/ 20 … 6?AWG | Fine-stranded conductor; with ferrule; push-in termination | 6 … 16?mm2?/ 10 … 6?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. | Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
