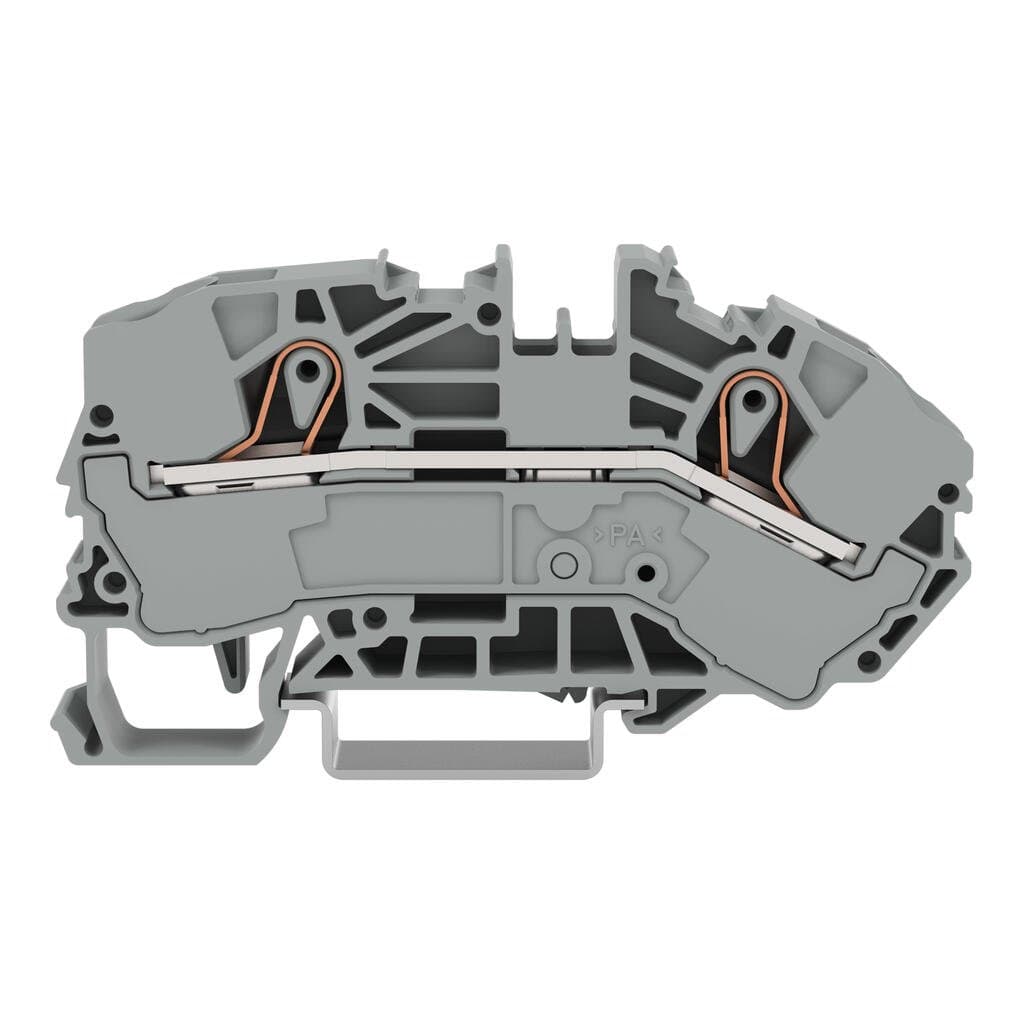

Product Model
2016-7601
Selling Points
- 1Efficient Connection: Push-in CAGE CLAMP technology for quick and secure connections.
- 2DIN-Rail Compatible: Designed for mounting on DIN-rail 35 x 15 and 35 x 7.5.
- 3High Current Rating: Rated for 76 A, suitable for demanding applications.
- 4Easy Installation: Side and center marking for precise wiring.
- 5Durable Construction: Made from high-quality polyamide (PA66) insulation material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 12?mm?/ 0.472?inches | Height | 85.7?mm?/ 3.374?inches |
Depth from upper-edge of DIN-rail | 40.8?mm?/ 1.606?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.062MJ | Weight | 29.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-46 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4045454725082 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 76A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 2.426W |
Rated current I<sub>N</sub> for specified power loss | 76A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 16 mm2 |
Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG | Solid conductor; push-in termination | 6 … 16?mm2?/ 14 … 6?AWG |
Fine-stranded conductor | 0.5 … 25?mm2?/ 20 … 4?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 16?mm2?/ 20 … 6?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 6 … 16?mm2?/ 10 … 6?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. |
Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
